Shenzhen Skoocom Electronic Co.,Ltd is one of the leading manufacturers and suppliers of Micro diaphragm Vacuum Pump SC3704PM in China. We provide high quality products for medical devices and beauty appliance. Welcome to wholesale RoHS, REACH and ISO certified products made in China here and get quotation from our factory. Also, custom service and ODM service are available.

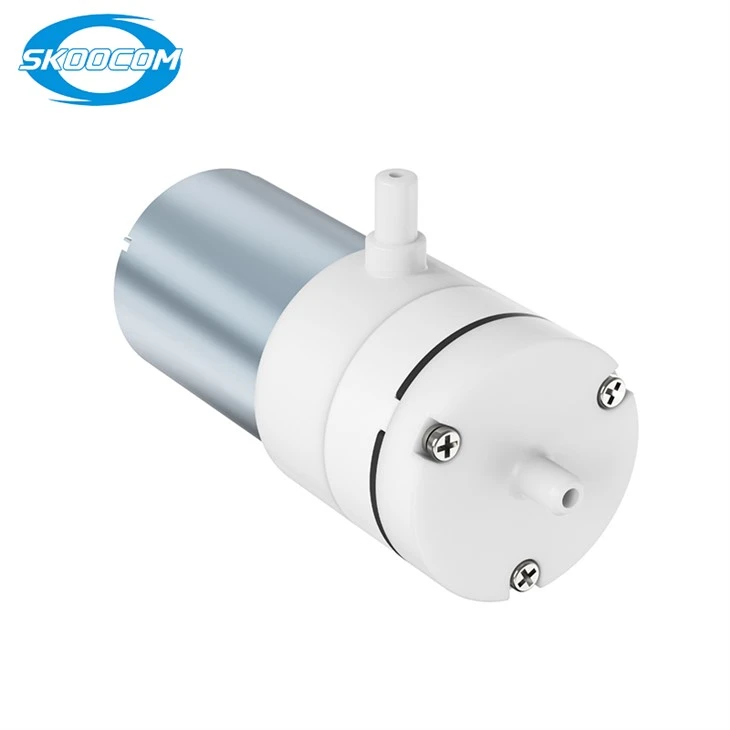

Breast pump used: SC3704PM
The breast pump works by creating a vacuum negative pressure to simulate the sucking process of a baby. Its core mechanism involves the linkage between periodic changes in air pressure and mechanical structure:
Power Source Drive: The electric breast pump is equipped with a miniature DC motor that drives the eccentric mechanism or
piston/membrane assembly to generate reciprocating motion at a frequency of 25 times per second.
Negative Pressure Generation: When the piston or membrane moves upward, the volume of the cavity inside the suction cup increases, creating a local low-pressure environment, which causes the nipple and areola to be adsorbed and encapsulated; at this time, the mammary ducts are stimulated by negative pressure to expand, and milk begins to flow.
Pressure Release and Cycle: When the piston/membrane returns to its original position, the pressure in the cavity is restored, and the milk is pushed into the milk storage bottle, completing a single suction action; the system achieves continuous milk extraction by repeatedly performing this process at a high frequency.

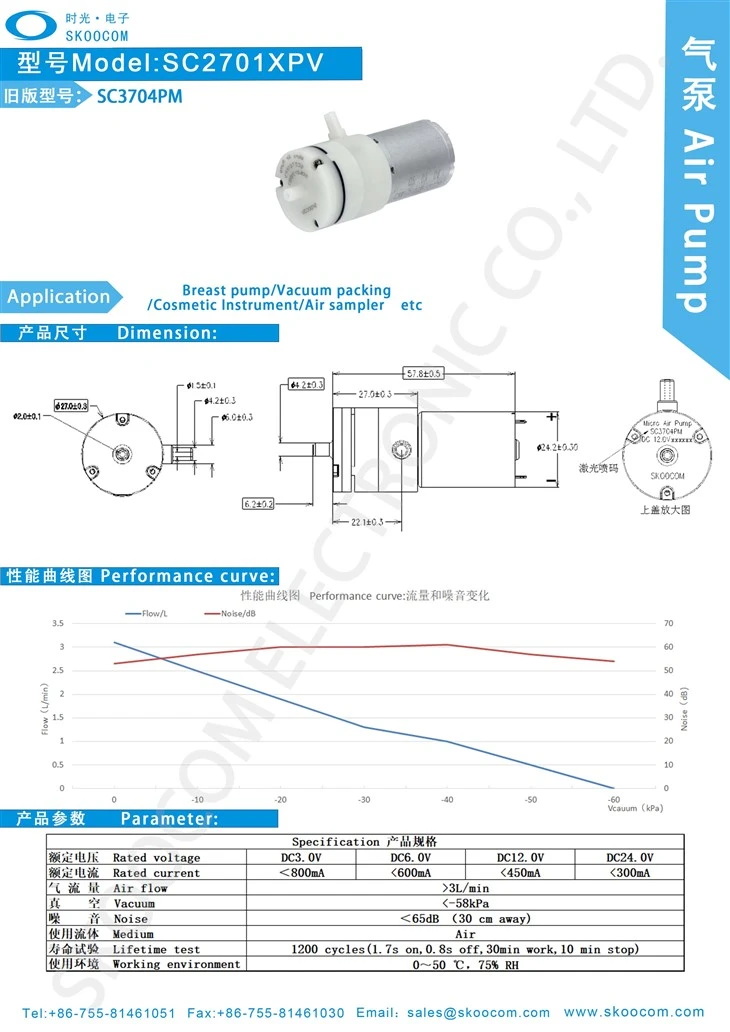

| Parameter | DC 3.0V | DC 6.0V | DC 12.0V | DC 24.0V |
| Rated Voltage | DC 3.0V | DC 6.0V | DC 12.0V | DC 24.0V |
| Rated Current | < 800mA | < 600mA | < 450mA | < 300mA |
| Air Flow | > 3 L/min | |||
| Vacuum | < -58 kPa | |||
| Noise | < 65 dB (30 cm away) | |||
| Medium | Breast pump / Vacuum packing / Cosmetic Instrument / Air sampler, etc | |||
| Lifetime Test | 1200 cycles (1.7s on, 0.8s off, 30min work, 10min stop) | |||
| Working Environment | 0 ~ 50 ℃, 75% RH | |||
Our factory & equipment
Our Certificate
Product Applications: Our versatile products are ideally suited for a diverse range of uses, including breast pumps, vacuum preservation, beauty devices, and packaging machines, among others. We offer customized solutions to cater to your specific needs. Choose SKOOCOM to enhance your brand's reputation with the following advantages:
Exceptional Controllability: Our products provide precise control, ensuring efficient operation with minimal noise, high flow rates, and an extended service life for reliable, long-term use.
Compact Design: The sleek, space-saving design generates minimal noise while consuming low power, making it easy to operate and integrate into various applications.
Customizable Options: For products requiring specific voltage and flow specifications, our team is available to assist you in creating tailored solutions that meet your unique requirements. Contact us today to learn more.
FAQ
Q: Are your micro pumps & valves compliant with RoHS and REACH standards for global market entry?
A: Yes, all raw materials used in our micro diaphragm pumps and valves - including the rubber diaphragms and plastic casings-fully comply with RoHS and REACH environmental standards. We can provide testing reports upon request for seamless international compliance.
Q: How long is the delivery and shipping?
A: Batch orders will be shipped in 25 working days. Sample orders will be shipped within 3 working days.
Q: Do you offer samples for engineering testing before we place a bulk order?
A: Yes, we strongly encourage sample testing. We can prepare customized samples according to your technical requirements within 3-7 working days so your R&D team can perform real-device testing.
Q: What is your manufacturing capacity and experience with large-scale or Fortune 500 clients?
A: We operate an ISO9001-certified production facility with strict 100% QC inspection (airtightness and performance tests) before dispatch. Having served global clients: including Fortune 500 enterprises. We maintain stable lead times and reliable mass-production consistency.
