Micro Diaphragm Positive-Pressure Air Pump

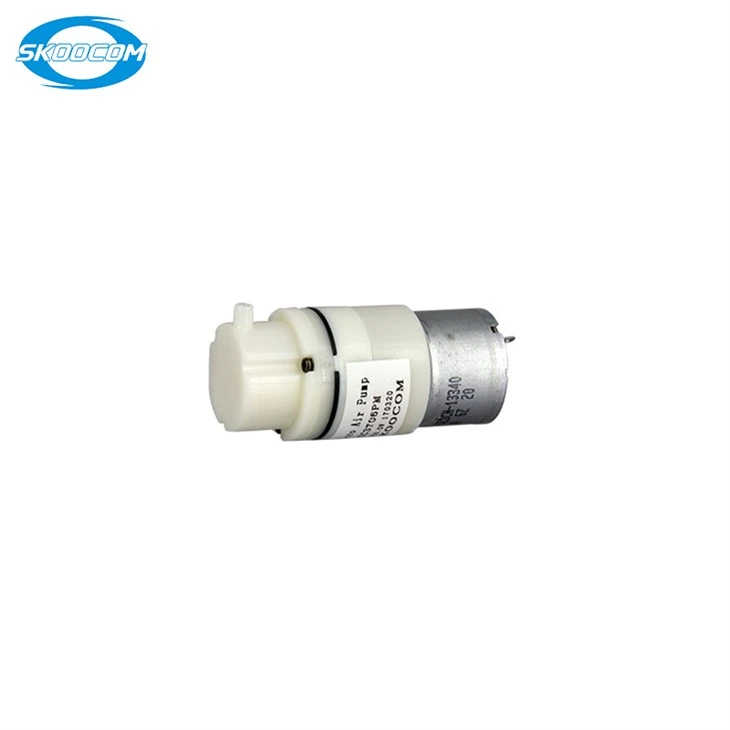

SC2704XPM Micro Diaphragm Air Pump for Massage Equipment

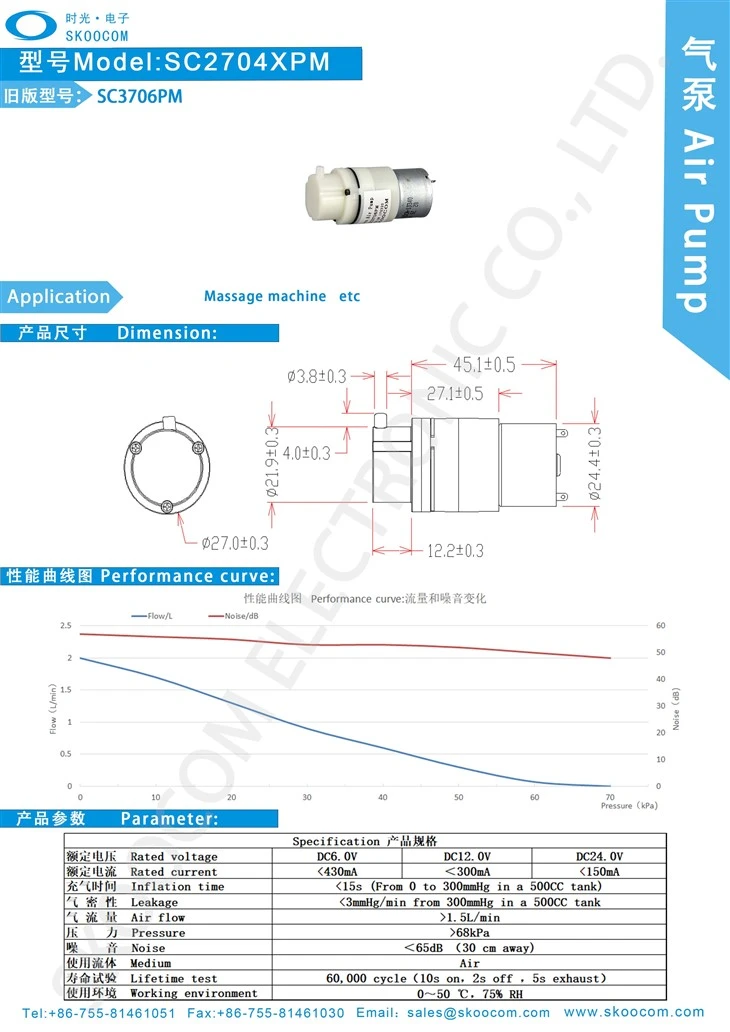

SC2704XPM is a compact positive-pressure diaphragm air pump for OEM massage equipment and pneumatic airbag systems. The supplied product drawing lists airflow above 1.5L/min, pressure above 68kPa and a 500cc-tank inflation time below 15 seconds from 0 to 300mmHg.
Medium: Air

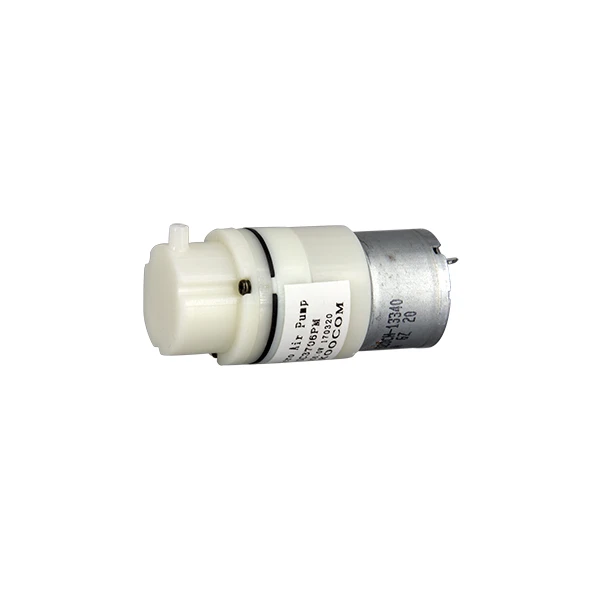

Legacy reference: SC3706PM. Confirm the exact legacy configuration before replacement because existing site documents also associate this reference with SC2706XPM.
Request an Engineering Sample-
Performance for Compact Pneumatic Massage Systems
Airflow above 1.5L/min: Supports inflation of compact massage airbags and lumbar-support bladders.
Pressure above 68kPa: Provides pump-level pressure capacity for systems with pneumatic resistance.
Measured inflation performance: Below 15 seconds from 0 to 300mmHg in a 500cc tank.
Leakage reference: Below 3mmHg/min from 300mmHg in a 500cc test tank.
60,000-cycle endurance profile: Tested at 10s ON, 2s OFF and 5s EXHAUST.
Compact 45.1mm envelope: Designed for installation in space-limited pneumatic modules.
Technical Specifications
| Current model | SC2704XPM |
|---|---|
| Legacy reference | SC3706PM; verify against SC2706XPM records before replacement |
| Pump type | Micro diaphragm positive-pressure air pump |
| Rated voltage | DC 6.0V / 12.0V / 24.0V |
| Rated current | <430mA / <300mA / <150mA |
| Airflow | >1.5L/min |
| Pressure | >68kPa |
| Inflation time | <15s from 0 to 300mmHg in a 500cc tank |
| Leakage | <3mmHg/min from 300mmHg in a 500cc tank |
| Noise | <65dB at 30cm |
| Medium | Air |
| Life test | 60,000 cycles; 10s ON / 2s OFF / 5s EXHAUST |
| Working environment | 0–50°C, 75% RH |
| Approximate dimensions | 45.1±0.5mm overall; Ø27.0±0.3mm pump head; Ø3.8±0.3mm outlet |
Massage Equipment and Pneumatic Airbag Integration
Use the pump with a pressure sensor, manifold valve and controlled exhaust path. Select the pump according to total airbag volume, target pressure, inflation time, tubing resistance, valve flow and maximum continuous ON time. The pump's maximum pressure is not the recommended pressure applied to a user.
System Design Notes
- Mount the pump on vibration-isolating material and test noise inside the finished enclosure.
- Keep liquid, oil, foam and condensate out of the air-only pump.
- Add overpressure detection and a fail-safe exhaust route.
- Validate motor temperature at the maximum real duty cycle.
- Measure actual inflation time with the final tubing, valves and airbag volume.
Company introduction
Rooted in Fluid Control, Forging National Intelligent Manufacturing.
Over more than two decades of exploration and development, Skoocom has established four subsidiaries, each responsible for one of four key sectors: Product R&D, Precision Molding, Precision Rubber, and Liquid Silicone Rubber. This not only creates economies of scale but also continuously strengthens the foundation for Skoocom's growth and expansion by reducing costs, improving service quality, and enhancing innovation capabilities. The company has introduced a wide range of advanced equipment to ensure that every step-from raw materials to finished products-undergoes rigorous inspection, control, and testing, so that every product can meet the diverse application needs of different customers.
Our Certificate
Frequently Asked Questions
1. Can the pump handle liquid or coffee?
No. The specified medium is air. Liquid, coffee, foam and condensate must be isolated from the pump.
2. Does the pump deliver 68kPa to the user?
No. The value is pump-level pressure capability. The finished device must regulate and limit its user-side pressure.
3. Is the pump suitable for continuous operation?
The supplied endurance test uses an intermittent 10-second ON, 2-second OFF and 5-second exhaust cycle. Continuous duty requires separate thermal and lifetime validation.
Request a Pump-Matching Review
Send the model label, voltage, target pressure, airbag volume, inflation time, duty cycle, tubing and annual quantity.
