How to Choose a Micro Water Pump for Water Purifiers, Tea Bar Machines and Coffee Machines
Three appliances, three different jobs. In a water purifier, the pump usually delivers finished water - it does not pressurise the RO membrane. In a tea bar machine, it lifts water from a bottom-mounted bottle. In a coffee machine, it refills the heating block - it does not create brew pressure. This guide shows where a 20 psi micro pump fits, and where it does not.
Start With the Job, Not the Model
| What the pump does | Pressure needed | 20 psi micro pump |
|---|---|---|
| RO membrane boost (domestic RO) | 5–8 bar (72–116 psi) | No - 3.6–5.8x short |
| Post-carbon / UF filtration and faucet delivery | 0.3–1 bar | Yes |
| Pipeline dispenser/tea bar outlet | 0.3–1 bar | Yes - primary fit |
| Bottom-load bottle lift (suction) | >1 m lift | Yes - >1 m dry self-priming |
| Espresso brewing (9 bar) | 9 bar (130 psi) | No - 6.5x short |
| Capsule machine (15–19 bar) | 15–19 bar | No |
| Drip / cold brew / heating-block refill | <0.5 bar | Yes |
In appliance engineering, a "booster pump" and a "delivery pump" are different parts. A 20 psi diaphragm pump is a delivery pump. If your drawing calls for membrane pressure, this is the wrong family - tell us the target pressure and we will quote the right one instead.


Flow Depends on the Pressure You Actually Run

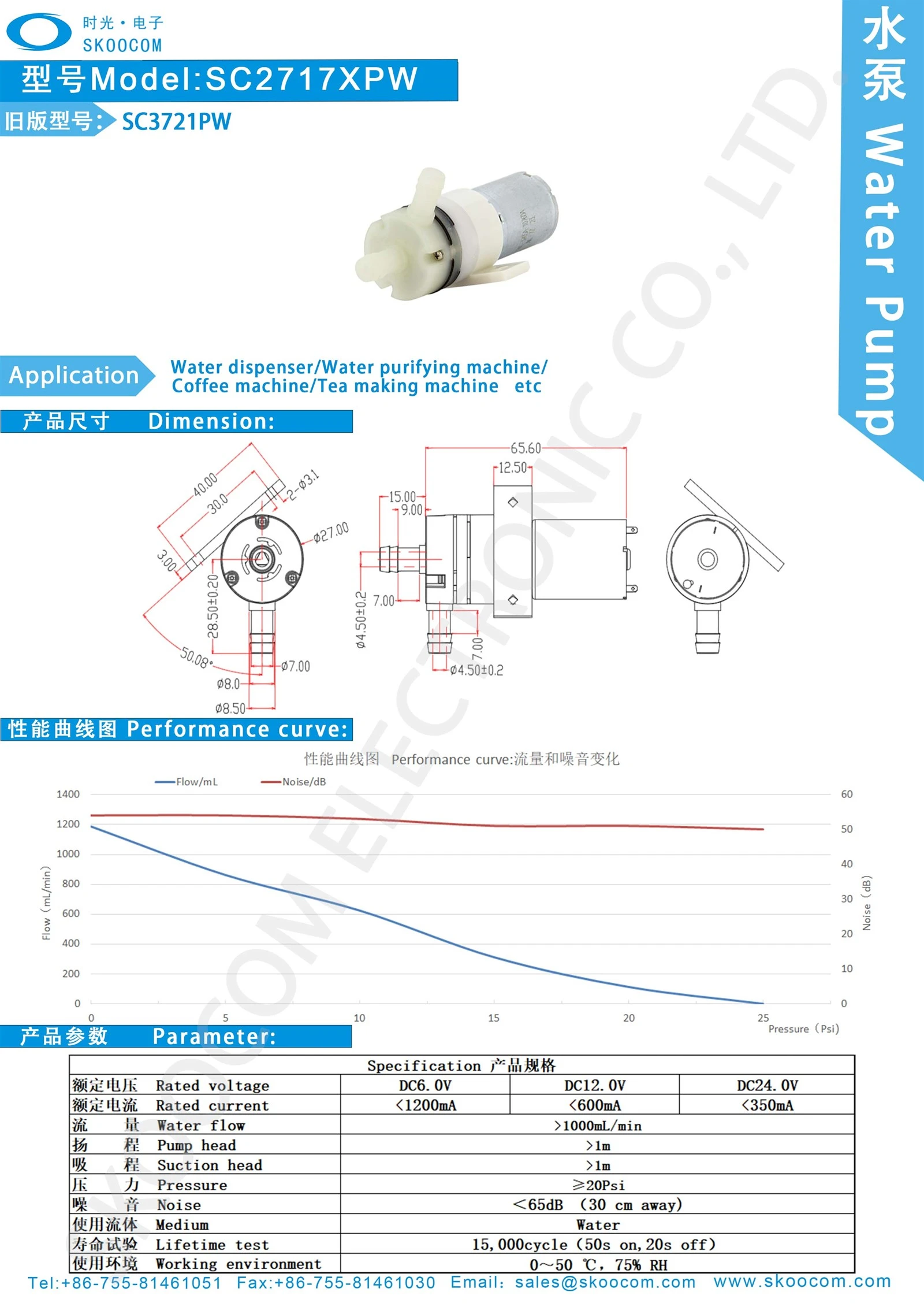

Free flow and rated pressure are the two ends of the same curve. Published figures for the SC2717XPW: >1000 mL/min free flow and ≥20 psi maximum. At maximum pressure, the flow is far lower.
| Outlet pressure | Flow (approx.) | Time to fill 200 mL |
|---|---|---|
| 0 psi | ~1220 mL/min | ~10 s |
| 5 psi (0.34 bar) | ~1140 mL/min | ~11 s |
| 10 psi (0.69 bar) | ~900 mL/min | ~13 s |
| 15 psi (1.03 bar) | ~600 mL/min | ~20 s |
| 20 psi (1.38 bar) | ~300 mL/min | ~40 s |
Size the pump against your real working point - the pressure after filters, check valves, and the heater coil - not against the free-flow number.
Tea Bar Machines: The Primary Fit
Bottom-loading tea bars hide a 5-gallon bottle in the lower cabinet and lift water to a countertop tap. That is a suction problem first and a flow problem second: >1 m dry self-priming means no pre-filling, no air lock, no dry running after a bottle change.
At the typical dispensing pressure of 0.3–0.5 bar, this pump runs near 1100 mL/min - a 1.5 L kettle in about 90 seconds. Measured noise on the curve is 52–53 dB, well inside the 65 dB ceiling.
Hot water boundary: the 0–50 °C rating is ambient temperature, not water temperature. Mount the pump upstream of the heater (cold side). For a hot-water circulation loop, ask for the high-temperature variant instead of using this pump.
Coffee Machines: Refill, Not Brew
Espresso extraction needs 9 bar. A capsule machine needs 15–19 bar. This pump delivers 1.38 bar, so it cannot build brew pressure - and no diaphragm pump in this size class can.
What it does well is the job upstream: lift water from the tank, meter it into the heating block, and hold steady against the block's backpressure. That is the architecture used in portable espresso machines, where pressure is generated by the heater and controlled by a valve, and in drip and cold brew equipment.
Water Purifiers: Delivery, Not Membrane Boost
Domestic RO membranes need 5–8 bar to overcome osmotic pressure. A 20 psi pump cannot do that. In a purifier, this pump belongs after the membrane: pushing finished water through post-carbon and mineral cartridges, filling the pressure tank, and feeding a pipeline dispenser or faucet.
Service Life: Count Dispenses, Not Hours
The 15,000-cycle rating is tested at 50 seconds on / 20 seconds off - about 208 hours of accumulated running. That is roughly 37,000 twenty-second cups or 25,000 thirty-second brews. It is an intermittent-duty pump: do not design a multi-litre continuous draw around the cycle figure.
company introduction

Rooted in Fluid Control, Forging National Intelligent Manufacturing.
Over more than two decades of exploration and development, Skoocom has established four subsidiaries, each responsible for one of four key sectors: Product R&D, Precision Molding, Precision Rubber, and Liquid Silicone Rubber. This not only creates economies of scale but also continuously strengthens the foundation for Skoocom's growth and expansion by reducing costs, improving service quality, and enhancing innovation capabilities. The company has introduced a wide range of advanced equipment to ensure that every step-from raw materials to finished products-undergoes rigorous inspection, control, and testing, so that every product can meet the diverse application needs of different customers.
Upholding our core ethos of "tackling challenges, embracing innovation and pursuing perpetual improvement", our team has cultivated a distinctive craftsmanship ethos centered on Precision, Refinement, Sophistication & Ingenuity. With the mission of "Create Convenience for Human Life" and driven by technological innovation, we continuously develop core technology products that lead the industry, constantly setting new benchmarks in key performance parameters: high pressure, high negative pressure, large flow rate, compact size, low noise, low power consumption, long service life, as well as precise control of pressure and flow-these are our core performance benchmarks we strive to perfect.
Skoocom implements a comprehensive quality management system and has successively obtained a series of certifications, including ISO9001, ISO14001, ISO56005, FDA, LFGB, NSF, RoHS, REACH, and more. Backed by a distinctive corporate culture, Skoocom brings together elite talents in management, R&D, and marketing. Infusing modern values with a relentless pursuit of innovation and self-transcendence, we are actively forging a next-generation modern enterprise defined by high-caliber talent, high-tech prowess, and high-growth potential. Thanks to our cutting-edge technologies, premium product lineup and comprehensive customer support, Skoocom's manufacturing facilities have hosted on-site inspections and guidance sessions led by senior officials from the Guangdong Provincial and Dongguan Municipal governments. The Skoocom brand has earned long-term partnerships and high acclaim from customers worldwide. Beyond consistently maintaining a leading market share, our products are highly favored in key international markets, including the United States, Germany, Japan, and South Korea.
Our Certificate




Frequently Asked Questions
1. Can this pump replace an RO booster pump?
No. RO boost requires 5–8 bar; this pump is rated ≥20 psi (1.38 bar). It is a delivery pump for post-membrane, pipeline, and faucet duty.
2. Does SC2717XPW come in 3 V?
No. SC2717XPW (formerly SC3721PW) is offered in DC 6 V, 12 V, and 24 V. The 3 V option is available on the SC3711PW platform. If a 3 V supply is mandatory, we will quote the SC3711PW to meet your flow requirement.
3. Can it pump hot water?
Not according to the published rating. The 0–50 °C figure is ambient temperature; no water-temperature limit is stated for this model. Use the cold side of the circuit, or specify the high-temperature variant.
4. How high can it lift water?
Above 1 m of dry suction lift and above 1 m of discharge head, per the engineering drawing. Note that published third-party statements of 2 m are not supported by our own data - size against 1 m.
5. What tubing fits?
Stepped outlet barb at ø7.0 / ø8.0 / ø8.5 mm and inlet at ø4.50 mm - commonly mated with 6×9 mm or 4×7 mm food-grade silicone tubing.
Tell Us the Working Pressure
Send the appliance type, the pressure the pump must hold after filters and valves, the required flow at that pressure, the suction lift, the supply voltage, and whether hot water is involved. We will confirm the model - or tell you that this family is the wrong fit and quote the correct one.
