A compression therapy sleeve looks like nothing more than an inflatable fabric bag, but it is surprisingly easy to get wrong at the prototype stage. The reason is not mysterious: a sleeve is not a balloon. It has multiple chambers, valves, tubing, connectors, and pressure feedback. The pump is not working in open air either. It is working in a repeated cycle of inflation, pressure hold, pressure release, and chamber switching. Many consumer-grade pumps with good-looking specs end up causing slow inflation, insufficient pressure, fast pressure decay, heat buildup during continuous operation, and pressure attenuation after a few months. The problem is often not a single component. It is that the pump was selected as an isolated part.
This article is written for design and procurement teams working on compression therapy sleeves, sequential compression massagers, and leg compression boots. It discusses the common failure mechanisms of low-cost consumer pumps and the specifications a more reliable micro diaphragm pump should be checked against. For medical and therapeutic claims, the complete device still needs to be validated under the regulations of the target market. This article only discusses device design and pump selection. It is not medical advice.
The Load of a Compression Sleeve Is Not the Same as "It Can Inflate"
Free-flow data can easily create false confidence. A pump may show an attractive flow rate with no back pressure, but once it is connected to a sleeve, valve springs, tubing bends, connector reductions, and seam lines all add resistance. The larger the sleeve, the more chambers it has, and the longer the tubing, the lower the effective flow the pump can deliver. What makes this harder is that compression sleeves usually require the target pressure to be reached within a certain time, then held, then switched from chamber to chamber. Most of the time, the pump is not producing continuous free flow. It is producing limited flow under back pressure.
So it is not enough to look only at a free-flow number such as 0.7–0.9 L/min. The questions to ask are: with the target sleeve volume, target pressure, and target tubing length, what is the inflation time? After the pressure reaches the threshold, does the pump still have enough margin to compensate for small leaks? How much pressure drops when the valve switches? If these questions are not answered, the prototype will go through repeated pump changes.
Five Common Failure Points in Low-Cost Pumps
1. The Free-Flow Number Looks Good, but Flow Disappears Under Back Pressure
Low-cost pumps often quote maximum flow at zero back pressure. After the pump is installed in a multi-chamber sleeve, the actual flow may be only a fraction of the stated value. The symptom is fast empty-load testing but slow operation once the sleeve is connected; a single chamber may test fine, but sequential multi-chamber switching drags out the cycle. The solution is not simply to choose a bigger pump. Ask the supplier for a back-pressure vs. flow curve, or test inflation time directly with your own sleeve. SC3301PM specifies inflation as "0 to 300 mmHg in a 500 cc reservoir in less than 7 seconds." That is closer to a real load than free flow, but it still needs to be verified with your chamber volume.
2. Pressure Margin Is Consumed by Valves and Tubing
A specification of "maximum positive pressure >350 mmHg" does not mean the complete device can hold 350 mmHg stably at every point. Valve opening pressure differential, connector leakage, and tubing expansion all consume margin. If the target working pressure is close to the pump's limit, the pump will run under heavy load for long periods, and noise, heat, and life will all suffer. As a rule of thumb, the working pressure should leave margin so the pump operates in a more efficient range instead of hitting its ceiling every time. A compression sleeve needs a stable, repeatable pressure curve, not a one-time high number.
3. Leak Rate Is Not a Pump-Only Metric; It Is a System Metric
A low leak rate matters for pelvic floor recovery devices and closed-loop pressure sensor control. The "<3 mmHg/min" in a specification usually comes with a defined test condition, for example, measured from 300 mmHg in a 100 cc tank. Complete-device leakage also includes valves, connectors, bladder material, and tubing. A low-leak pump does not guarantee good system pressure hold, but a high-leak pump makes stable system control very difficult. During procurement, separate the pump leak specification from the complete-device pressure-hold test. Ask the supplier to state the test volume, initial pressure, stabilization time, and correction method. Otherwise, a "low leak" label is not comparable.
4. Duty Cycle and Heat Buildup Are Underestimated
Compression sleeves often run in a cyclic duty: inflate, hold, release, switch chamber. The life test in a specification may use a 10-second ON, 7-second OFF duty cycle, which reflects part of the cyclic operation, but the real device may run multiple chambers sequentially, and the pump compartment may have poor heat dissipation. A low-cost pump may look fine in a short test, but after an hour of continuous operation, motor temperature rise, diaphragm fatigue, and increased noise begin to show. During selection, ask about continuous-operation temperature rise, allowable ambient temperature, and pump-compartment ventilation. SC3301PM lists an operating environment of 0–50°C and 75% RH. That is an environmental boundary, not a promise that any enclosed structure can run continuously at full load.
5. Life Testing Is Not the Same as Real Multi-Chamber Sequencing
"≥50,000 cycles" sounds like a lot, but the definition of a cycle matters. Is it a pump start-stop cycle or a complete inflate-deflate cycle? What pressure is reached each cycle? Is there a pressure hold? What is the ambient temperature? If the device uses sequential multi-chamber compression, the pump start-stop frequency and valve switching count may be completely different. Life testing should approximate the real duty cycle and compare pressure build-up time and leak rate before and after the test. Looking only at cycle count, without checking pressure attenuation, can lead to buying a pump that "still runs but has weaker pressure."
What to Specify: A Checklist
| Check Item | Common Problem with Low-Cost Consumer Pumps | More Reliable Selection Requirement |
|---|---|---|
| Back-pressure flow | Only free-flow data provided | Request a back-pressure vs. flow curve or complete-device inflation time |
| Maximum pressure | High nominal value but little margin | Working pressure below the limit, with margin for valve loss and leakage |
| Leak rate | Test conditions unclear | Define volume, initial pressure, and stabilization time |
| Duty cycle | Short-term testing only | Temperature rise and continuous-operation testing under real multi-chamber sequencing |
| Life | Cycle count only | Compare pressure build-up time and pressure-hold capability before and after |
| Noise | Single-pump data | Complete-device test at 30 cm, with damping pad and actual pump compartment |
| Dimensions | Length, width, and height only | Confirm port orientation, tubing bend, and assembly tolerance |
The point of this table is not that bigger numbers are always better. It is that the test conditions should resemble the complete device. The comfort and pressure repeatability of a compression therapy sleeve come from matching the pump, valve, chamber, and sensor, not from a paper champion of a single pump.
Where SC3301PM Fits, and Where It Still Needs Verification

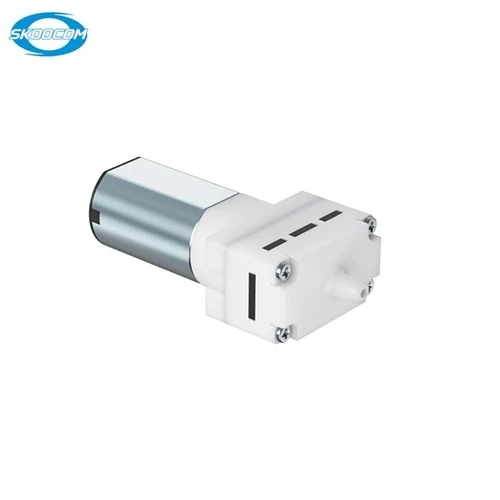

SC3301PM is a micro diaphragm pump measuring 37.1 × 21.0 × 12.0 mm, available in DC 3.0 V and DC 6.0 V versions. The 3.0 V version draws less than 320 mA, and the 6.0 V version draws less than 200 mA. Flow is 0.7–0.9 L/min. Maximum positive pressure is >350 mmHg. Inflation from 0 to 300 mmHg in a 500 cc reservoir takes less than 7 seconds. Leak rate is <3 mmHg/min under the condition of 300 mmHg in a 100 cc tank. Noise is <60 dB, typically around 58 dB, measured at 30 cm with a damping pad. Life is ≥50,000 cycles with a 10-second ON, 7-second OFF duty cycle. It is suitable for inflatable wearable devices that need a compact footprint, low leakage, and relatively low noise, such as compression sleeves, sequential compression massagers, pelvic floor recovery device bladders, and eye/head massagers.
But it is not a universal pump that works simply by installing it. The complete-device design must confirm several things: whether the sleeve volume is close to the 7-second inflation condition; whether valves and tubing create additional pressure drop; whether the pump compartment supports heat dissipation; whether the port orientation suits a curved headband or sleeve structure; whether the current draw and boost circuit match a 3 V battery supply; and whether the 6 V version has sufficient voltage margin. Medical devices also require regulatory, biocompatibility, electrical safety, and clinical-claim validation. Selection engineers should test prototypes for back-pressure inflation, pressure-hold leakage, continuous-cycle temperature rise, noise, and before-and-after life comparison, rather than relying only on the datasheet.
3 V or 6 V: Do Not Look Only at Voltage
The 3.0 V version is suitable for battery-powered products that are sensitive to current limits, but under the same load it draws more current, and battery internal resistance and boost circuitry affect real performance. The 6.0 V version draws less current and usually has better thermal and current margin in high-load cycling, but the device needs a 6 V supply or a boost solution. For a portable compression boot, battery life, heat, and inflation speed must be calculated together. For a clinic or home device with fixed power, a 6 V solution may make it easier to achieve pressure margin. Do not assume "3 V saves power" or "6 V is more powerful." Look at the complete-device input, pump-compartment heat dissipation, and target inflation time.
Noise and 12 mm Thickness: Assembly Determines the Experience
For products worn near the ears, such as eye massagers and head massagers, the noise path of the pump matters more than the single-pump dB value. Around 58 dB measured at 30 cm with a damping pad may become worse after installation in a hard plastic headband because of resonance. The 12.0 mm thickness helps with thin designs, but port orientation, hose bend radius, and damping-pad placement determine assembly difficulty. Confirm the pump's mounting tabs, inlet/outlet port orientation, and vibration-damping solution at the mechanical design stage. Do not wait until the tooling is cut.
Procurement and Prototype Validation Steps
First define the complete-device operating conditions: chamber volume, target pressure, inflation time, pressure-hold time, cycle sequence, ambient temperature, and pump-compartment heat dissipation. Then ask the supplier for back-pressure flow, leak-test conditions, life-test definition, and noise-test conditions. At the prototype stage, run at least four tests: inflation time to target pressure; pressure drop over a 3–5 minute pressure hold; temperature rise and noise change during one hour of continuous multi-chamber cycling; and comparison of pressure build-up time after 5,000–10,000 cycles. Only after these pass should you discuss mass-production consistency and incoming inspection. Selecting a pump this way saves more time than repeatedly changing samples.
FAQ
Q1: Is a flow of 0.7–0.9 L/min enough for a compression sleeve?
It depends on sleeve volume and back pressure. Free flow is not back-pressure flow. You must measure inflation time with the actual device chamber. Less than 7 seconds for 500 cc to 300 mmHg is a reference condition, not a guaranteed value for every sleeve.
Q2: Is a leak rate of <3 mmHg/min low enough?
For many pressure-hold devices, it is a relatively low level, but the complete device also depends on valves, connectors, and bladders. Test conditions must be clear; otherwise, data from different suppliers is not comparable.
Q3: How do I choose between 3 V and 6 V?
For battery-powered devices with current limits, evaluate 3 V first. For higher pressure margin, lower operating current, or fixed power, consider 6 V. The final decision depends on complete-device inflation time, temperature rise, and power architecture.
Q4: Are 50,000 cycles enough?
It depends on cycles per day and the definition of a cycle. Confirm test pressure, duty cycle, and ambient temperature, and compare pressure build-up time before and after life testing rather than looking only at the cycle count.
Q5: Can a noise level of <60 dB be used directly in an eye mask?
Single-pump data cannot replace complete-device testing. Pump-compartment structure, damping pads, tubing, and housing resonance all change the perceived noise. A complete-device noise test at 30 cm is required.
Conclusion
When low-cost consumer pumps fail in compression therapy sleeves, the cause is usually not simply that "the pump is too small." It is that free-flow data, pressure margin, system leakage, duty cycle, and life-test conditions are not aligned with the complete-device operating conditions. A more reliable approach is to select the pump as part of the system: verify it with back-pressure inflation time, pressure-hold drop, continuous-cycle temperature rise, and pressure attenuation before and after life testing. The SC3301PM 3 V/6 V versions, with >350 mmHg, <3 mmHg/min leak rate, approximately 58 dB noise, and 50,000-cycle life, are suitable as candidate pumps for compact inflatable wearable devices, but they still need prototype verification against your sleeve volume, valve body, and pump-compartment structure. To evaluate a sample, prepare three data points-target pressure, chamber volume, and duty cycle-before starting the test.
