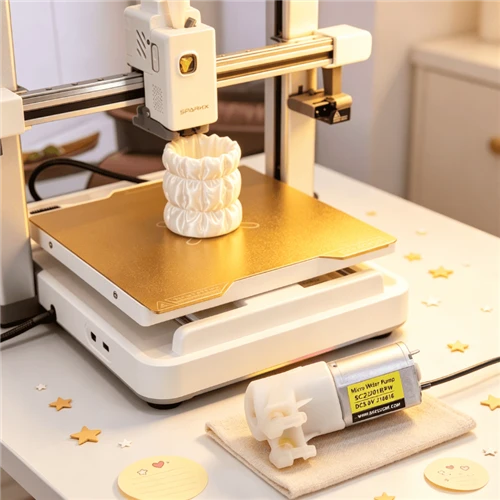

The Pure Choice Empowering High-Precision Fluid Control in 3D Printing

At a glance

Principle - tube compression (peristaltic), positive displacement; fluid touches the tube interior only.

Variants - SC2201RPW is supplied in 3 V DC, 6 V DC and 12 V DC windings.

Flow class - 20-50 mL/min, set by motor speed and tube bore rather than by a valve.

Design focus - long-life tube and roller interface, so tube changes stay scheduled maintenance.

Best fit - precision dosing, ink and reagent lines, binder feed and flush circuits where cross-contamination is not acceptable.

What "Pure" Means in a Pump That Touches Only Its Tube

"Pure" describes the fluid path, not the finish. In SC2201RPW the fluid is pushed by rollers squeezing a flexible tube, so the wetted surface is the inside of that tube: no gears, no pistons, no seals and no check valves sit in the flow. Replace the tube and the fluid path is new again.

That single design choice explains most of the pump's behaviour. With no rotating part inside the flow there is nothing to corrode or gall, and no clearance that wears open and lets flow drift. With no valves, the pump can run dry, reverse and hold a tube of liquid. The price is that flow depends on the tube's elasticity, so the tube is both the precision element and the wear part.

The wetted path, compared

Three pump families used in and around 3D printers handle the same fluids in very different ways, and that difference decides cleaning routines and changeover time.

What purity buys a 3D-printing workflow

The practical gains show up at the workflow level. Binder, reagent, ink and support-material lines each carry their own chemistry, and any shared internal volume becomes a contamination path when builds change. A tube-based feed keeps that risk inside a component replaceable in minutes, keeps fluid away from lubricants and motor heat, and lets a multi-material printer define a clean path simply by changing a tube.

Inside SC2201RPW: Five Layers That Decide Its Behaviour

The pump is easiest to specify and troubleshoot as five functional layers: the drive, the rotor and rollers, the tube, the head that holds it in alignment, and the fluid connections. Each layer owns a different set of parameters, so a problem that looks like a weak pump usually traces back to one specific layer.

The layering matters most when a build moves from a bench prototype to a machine that runs unattended. On the bench a pump either turns or it does not; in a machine the questions become flow repeatability, tube life and behaviour when a line blocks. Those questions belong to different layers, so they are specified separately.

Layer 1: the drive

The drive converts electrical power into rotation. SC2201RPW is offered in 3 V, 6 V and 12 V variants, and the winding voltage sets the current drawn for a given output: the lower the voltage, the higher the current. Speed is the flow control on a peristaltic pump, and a geared motor trades speed for torque when a long discharge line raises the load.

Layer 2: the rotor and rollers

Rollers are the occlusion elements. Each roller flattens a section of tube and pushes fluid ahead of it while the tube springs back behind and draws fresh fluid in. More rollers give smaller pulses and a shorter sealing span; fewer rollers give a longer, gentler compression cycle. Roller geometry and spring pressure set how hard the tube is squeezed, which balances flow accuracy against tube fatigue.

Layer 3: the tube

The tube is the only wetted part, and it sets flow per revolution, chemical compatibility and service life. Silicone is the general-purpose choice for aqueous inks and reagents; performance tubing is used where longer life or better chemical resistance justifies the price. Bore size sets the volume swept per pass, wall thickness sets recovery, and hardness sets how much pressure the pump can generate before the tube balloons instead of sealing.

Layer 4: the head and retention

The head holds the tube at the right tension and alignment so each roller compresses it by the intended amount. It is also a heat path, because repeated compression generates heat that must leave the assembly. Clamps that are too loose let the tube creep and reduce flow; clamps that are too tight over-compress it and shorten its life without adding useful flow.

Layer 5: the fluid connections

Connectors, suction line, discharge line and priming complete the system. A short, well-supported suction run with a generous bore feeds the tube properly; a long, narrow or collapsing line starves it and produces the classic symptom of a pump that runs fast but delivers little. Discharge length and height decide how much pressure the pump must overcome before any fluid arrives.

The Working Envelope: Four Numbers and How They Interact

Four numbers define the envelope: supply voltage, flow rate, the pressure the tube can hold, and duty cycle. They trade against each other, so a working point that improves one usually costs another. Confirm the datasheet values for the tube actually fitted, because the tube sets two of the four.

The table below collects what the model brings to a build, and what has to be confirmed against the datasheet before a machine is signed off. Treat the last column as the engineering task that follows the purchase, not as optional paperwork.

3 V, 6 V and 12 V: what actually changes

The voltage variants do not change the principle; they change the electrical bargain. A 12 V winding draws less current for the same output and suits a 24 V printer through a small buck converter or a 12 V accessory rail. A 6 V variant pairs with a 5 V architecture. A 3 V variant draws the highest current, so conductor size, connectors and driver rating matter more than the voltage itself.

The practical rule is to choose the variant whose voltage the machine already produces cleanly, then size the driver and the fuse for the highest current the pump can demand. Speed control comes after that, usually as PWM on the driver stage rather than a change of voltage, because lowering the supply voltage reduces torque as well as speed.

Flow: from 20 to 50 mL/min

Flow is set by two things: how much fluid one roller pass displaces, and how many passes happen per minute. Displacement per pass follows the tube bore and wall thickness, so a tube change moves the entire flow curve. The table below works through the arithmetic with an illustrative displacement, which is the fastest way to see how the 20-50 mL/min band is reached.

Read the table in reverse when you specify: decide the flow you need, then check whether the speed required to reach it is comfortable for the motor and the tube. Speeds that push the pump to its upper limit raise pulsation, heat and tube wear together, so a working point in the middle of the band is usually the better production setting.

Back-pressure and suction lift

Peristaltic pumps are pressure-limited by the tube rather than by a valve. As discharge pressure rises, the tube wall is pushed back against the roller and the seal degrades, so flow falls even though the motor keeps turning. On the suction side the same elasticity does the work: the tube must recover fully after each roller passes, which is why a long suction run or a viscous fluid reduces delivery even when nothing is blocked.

Duty cycle and temperature

Continuous operation makes the pump head warm, and the tube feels it first. Heat accelerates compression set, so a tube that runs cool for hundreds of hours may fail much sooner in a closed enclosure without airflow. Keep the head in moving air where the machine allows it, and record the head or fluid temperature during an endurance run instead of assuming the ambient figure covers it.

Where a 20-50 mL/min Micro Pump Fits in 3D Printing

A 20-50 mL/min micro pump covers the fluid duties that sit between a dropper and a pressure-driven extruder: binder and reagent dosing, ink supply and circulation, support-material delivery, low-solids ceramic and biological inks, and cleaning or flush lines. It is the wrong tool for stiff, high-solids paste.

The distinction matters because 3D printing spans an enormous viscosity range. Peristaltic dosing owns the thin end, where fluid flows readily, pressure demand is modest and repeatability counts more than force. Ceramic paste, filled polymers and other high-solids systems own the thick end, where pressure and torque dominate and a different pump family is the correct answer.

For teams that need the deposition step validated on real hardware rather than on a bench rig, material-extrusion builds and process trials are available through Superior's 3D printing service, where the fluid line and the motion system are qualified together.

Where it does not fit

Three duties sit outside this pump's envelope. High-solids ceramic paste and other stiff formulations need pressure and torque a micro tube pump cannot supply economically. Abrasive slurries attack the tube from the inside, so tube life becomes the dominant cost rather than a maintenance item. Sustained high-pressure delivery into a small nozzle can split the tube and flood the machine. When a build moves that way, the selection question changes from pump speed to pump family.

Integration Rules for a Printer Build

Mount the pump where the tube can run short and straight, support the discharge line, keep the head in moving air, and prime before the first build. Eight rules cover the installation decisions that most often decide whether a micro pump behaves in a machine.

Keep the suction line short and as wide as practical; every extra centimetre adds friction the tube must overcome.

Mount the pump head below the fluid level where the reservoir allows, so gravity helps the fill.

Avoid sharp bends and tight clips, because a kink changes the tube's recovery and the flow curve with it.

Support the discharge line mechanically so its weight does not hang on the head or the fitting.

Leave the tube free at both ends of the head so it can move slightly as it is compressed.

Keep the motor and head in moving air, because heat is the tube's least visible enemy.

Fit a suction strainer when the fluid can carry particles, and service it on schedule.

Label the tube with its part number and installation date so the replacement history is visible on the machine.

Pulsation: the problem and three fixes

Rollers deliver fluid in discrete packets, so discharge pressure ripples at the roller frequency. For dosing onto an open surface the ripple is harmless once pulses are small relative to the target volume; feeding a nozzle, it can show as surface texture. Three fixes work: raise the pulse frequency, add a small damping volume downstream, or time pulses to the motion path.

Priming and bubble management

Air is the most common reason a new installation under-delivers. The tube must be filled before it can displace fluid usefully, and a bubble acts as a spring that absorbs each roller pass. Prime at moderate speed with the discharge open, confirm the meniscus travels, and keep the suction inlet submerged as the level falls. If the fluid outgasses, re-prime after each reservoir change.

Choosing Between the 3 V, 6 V and 12 V Versions

Choose the variant the machine can already supply cleanly: 12 V where a 12 V or 24 V rail exists, 6 V where only a 5 V rail is available, and 3 V only when the supply and driver are sized for the higher current it draws.

Electrical integration follows the same logic as any small DC load on a printer, with two differences. The pump is a motor, so it needs a switching stage rather than a logic pin and a flyback path across its terminals. And it is a dosing element, so speed stability matters as much as starting capability: a supply that sags under heater load changes the flow rate mid-build.

Driving the pump from printer electronics

The board does not power the pump; it signals a driver that does. A single low-side N-channel MOSFET with a gate resistor, a pull-down and a flyback diode covers most builds, provided the device is logic-level and rated above the pump's stall current, and the current comes from a rail with headroom. The full set of checks is in the companion guide on mainboard voltage and current matching.

PWM, speed accuracy and flow verification

PWM is the normal way to set pump speed, and for a brushed DC motor it works well when the switching frequency suits a mechanical load rather than a fan. Keep the cycle time in the millisecond range, set a minimum duty below which the pump stops cleanly instead of stalling hot, and re-calibrate after every change of tube, fluid or discharge height. Record the measured dose in the inspection and flow verification routine.

Planning Tube Life, Not Just Pump Life

Tube life is consumed by compressions, not by hours: every roller pass costs part of the tube's rated life. Halving the speed roughly doubles the service interval, which is why the tube change schedule should follow the duty actually run rather than a calendar.

The arithmetic is simple enough to do before commissioning. Multiply roller count by shaft speed for compressions per minute, multiply by sixty for compressions per hour, and compare that with the rated number for the tube in use. Run the same calculation at the fastest and slowest recipe settings, and the worst case becomes the maintenance plan.

A replacement schedule that works in production

Schedule by compressions rather than by weeks. Log the tube part number, installation date, fluid and speed setting, then set the replacement interval at about two-thirds of the calculated life, so a change of recipe or a warm week does not push the tube past its limit. Treat a flow reading that drifts down at fixed speed as the first sign of tube fatigue.

Commissioning Checklist and First-Run Calibration

Commission the pump in seven steps: mount, prime, set a safe speed, calibrate the delivered volume, check for pulsation and leaks, record the working point, and write down the tube replacement interval. The calibration record is what turns a working prototype into a repeatable process.

Mount the pump so the tube runs short and straight, the head sits in moving air, and the suction inlet stays below the reservoir level.

Prime at moderate speed with the discharge open and confirm the line is full before the first dosing run.

Start at low duty, raise it until the pump turns reliably, and note the minimum duty at which it starts without stalling.

Calibrate by dosing onto a balance or into a graduated cylinder; use a dose large enough that the reading error is small, and repeat it three times.

Check pulsation at the working speed and add damping if the deposit shows ripple.

Log the working point: tube part number, duty, measured flow, fluid temperature and discharge height.

Set the tube replacement interval at about two-thirds of the calculated life and note it on the machine.

Two checks belong in the same session even though neither is part of calibration. Watch the pump start against a restricted discharge once, so the behaviour of a blocked line is known in advance. And measure the supply voltage at the pump while the heaters and motors are active, because a rail that looks healthy on the bench can sag during real work.

When a fluid system has to be qualified for production rather than for a demonstration, it helps to have the deposition and the hardware validated together. Send the fluid specification, the dose per layer and the discharge geometry with an instant quote request and we will confirm the pump configuration and the build plan before anything is ordered.

Frequently Asked Questions

Five questions come up most often when a tube pump is specified for a printer: what it can and cannot pump, how the flow is set, how the voltage variants differ, how long the tube lasts, and how the pump behaves when the line blocks.

Can SC2201RPW print ceramic paste or other high-viscosity materials?

Not the stiff, high-solids pastes used for robocasting, because a tube pump is limited by the pressure its tube can hold rather than by motor torque. A low-solids ceramic suspension or a hydrogel that flows readily sits inside this pump's range. If the fluid needs a ram, screw or gear pump at the required rate, a micro tube pump is the wrong family.

How is the flow rate set on a peristaltic pump?

Flow is the product of the volume displaced per roller pass and the number of passes per minute, so speed is the control handle and the tube is the calibration constant. The practical routine is to fix the tube part number, set the speed that meets the target dose, measure the delivered volume, and then record both together. Changing the tube resets the calibration and requires a new measurement.

What is the difference between the 3 V, 6 V and 12 V versions?

They differ in the electrical bargain rather than the pumping principle. A 12 V winding draws less current for a given output and suits a machine with a 12 V or 24 V rail; a 6 V variant pairs with a 5 V architecture; a 3 V variant draws the most current and rewards short, thick leads. Size the driver, fuse and wiring for inrush and stall rather than the running figure.

How long does the tube last, and what ends its life?

Tube life is consumed in compressions, so roller count and shaft speed decide how quickly the rated number is spent. Chemistry, particles, back-pressure and heat shorten it further, with over-compression and heat doing the most invisible damage. Because a tired tube loses flow at fixed speed before it fails visibly, replace on a calculated schedule and treat falling flow as the early warning.

What happens if the discharge line blocks?

In most installations the motor keeps turning while the tube's seal slips, so the immediate effect is lost flow rather than a stall. If the blockage persists, pressure builds against the tube wall and the tube can creep or split at the roller track. Detect it with discharge pressure or motor current where the process warrants it, and test a blocked line once during commissioning.
