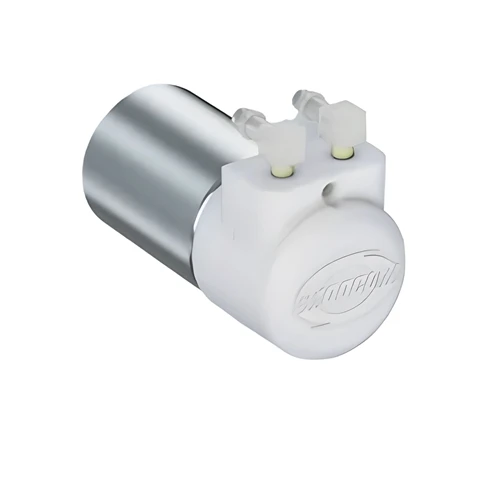

The SC2601RPW is a DC 6-12 V micro peristaltic water pump rated at 100-300 mL/min, more than 120 kPa of pressure, more than 60 kPa of suction, under 50 dB at 30 cm, and a 1,000-hour life test. This guide turns those numbers into selection decisions: which voltage version to order, how much heat the flow can carry, and where a different pump type is the better answer.

If you are choosing the pump, read the sections in order. If you already own one and want to know whether it suits a particular build, skip to the build-matching table.

The short answer

Flow is the first filter. 100-300 mL/min clears roughly 70-210 W at a 10 °C rise, which is one hotend cold block or one laser cold plate. It is not enough for a whole enclosed electronics bay.

Voltage sets speed and current, not strength. All four versions sit inside the same 100-300 mL/min band. The 12 V unit reaches the top of it while drawing under 320 mA, which is why it is the usual choice on a printer.

Suction matters more than pressure here. At more than 60 kPa of vacuum the pump self-primes and can draw from a reservoir below the machine. A centrifugal pump would need a flooded inlet instead.

Buy margin, not the nameplate. Tube length, elbows, a filter or a check valve can cost 20-30% of the rated flow. Size the loop from the heat, then add that margin.

What this guide covers

Reading the datasheet in priority order

Voltage and current: the 6 V to 12 V decision

Flow rate: the heat load the pump can carry

Pressure and suction in bar, PSI and metres of head

Peristaltic, diaphragm or centrifugal

Matching the pump to four common printer builds

Noise and service life as selection criteria

Seven selection mistakes

The pre-order checklist and FAQ

How to read the SC2601RPW datasheet, in priority order

Read the specification set in this order: flow and heat load first, then suction, then voltage and current, then noise and life. Reversing it is how builders end up with a pump that is quiet and precise but far too slow, or fast but unable to prime.

Flow and suction are the two numbers that decide whether the pump works at all in your loop, because they set the heat it can carry and whether it can start from a dry line. Voltage and current decide whether it fits your power rail and wiring. Noise and life decide whether you will be happy with it after the novelty wears off.

The SC2601RPW specification set, and the decision each line drives

Voltage and current: the 6 V to 12 V decision

Choose the version that matches the power rail you already have. On a 3D printer that is almost always 12 V, which also reaches the top of the flow band while keeping the current low.

Voltage is the most over-read number on a pump datasheet. Higher voltage does not add pressure or make the pump inherently stronger; it raises the roller speed and, at the same power, lowers the current. Because flow follows speed in a positive-displacement pump, the voltage version effectively sets the ceiling on your flow range, and pulse-width modulation (PWM) sets the working point below it.

Power figures are calculated as P = V x I from the rated values. Source: manufacturer datasheet.

Current matters more than most builders expect. Under 320 mA at 12 V means the pump can share a printer's existing rail through a thin pair of wires, without a dedicated supply. Keep it on its own branch and away from stepper and heater cables all the same, because the motor is a brushed DC load and its switching noise travels along shared grounds.

One practical rule: never slow a 12 V pump by feeding it 6 V. That shifts the motor off its design point, cuts the flow without giving you clean control, and gains nothing a PWM ramp would not do better.

Flow rate: the heat load 100 to 300 mL/min can carry

100 to 300 mL/min carries roughly 70 to 210 W at a 10 °C rise, so the SC2601RPW suits one hotend cold block or one laser cold plate, not a whole printer.

The arithmetic is short. Required flow equals the heat load divided by the coolant's specific heat and by the temperature rise you accept. For water, with a volumetric heat capacity of about 4.19 J/(cm³·K), that reduces to a single line: flow in mL/min is approximately 14.3 times the heat load in watts, divided by the rise in Celsius.

Take a real example. A large-format printer runs a liquid-cooled hotend heat break that has to shed about 45 W, plus a 40 W diode laser module cold plate that is only used for part of the job. The steady combined load is roughly 60 W, though the laser pushes it towards 85 W during marking. At a 10 °C rise the steady case needs about 86 mL/min and the marking case about 122 mL/min. Both sit in the lower half of the SC2601RPW's band, so the pump runs quietly at part duty with plenty in reserve.

Two consequences follow from that example.

Size for the peak, run at the average. you size the loop for the peak load, not the average, and you keep the pump inside its band at that peak.

Headroom is a selection decision. a heavily loaded loop has no headroom, so an undersized pump cannot be fixed with a bigger radiator.

Flow scales with roller speed in a positive-displacement pump, so duty and flow move together. Approximate mapping from the datasheet flow band; heat figures use the 14.3 x W / rise relationship.

The counter-example matters just as much. A sealed chamber that needs 150 W removed would ask for about 215 mL/min at a 10 °C rise, which sits near the top of the SC2601RPW's band with no margin left for tubing losses. That is the point at which the honest answer is a larger pump, or a redesign that removes some of the heat by air before it reaches the coolant.

Whichever figure you calculate, add 20 to 30% before you commit. Published flow ratings are measured on a short, straight test rig, and a real loop adds tube length, bends, a filter, a check valve and a height difference between reservoir and cold plate. Each of those costs flow, and they add up faster than most first prototypes expect.

Pressure and suction in bar, PSI and metres of head

More than 120 kPa is 1.2 bar, 17.4 psi or about 12 m of water head. More than 60 kPa of suction is 8.7 psi, enough in theory to lift water about 6 m.

Those conversions are worth keeping handy, because pump datasheets mix units freely and a single number can look impressive or trivial depending on which one is quoted.

Conversions use 1 kPa = 0.145 psi and 1 m of water head = 9.81 kPa; head figures are theoretical, before losses. Sources: standard pressure conversions; manufacturer datasheet.

On a sealed printer loop, pressure is close to a non-issue. A cold plate, a metre of tubing and a small radiator cost a few kPa at these flow rates, so the SC2601RPW's 120 kPa is a large multiple of what the loop will actually demand. What the figure tells you is that the pump is a positive-displacement design, and positive-displacement pumps keep pushing when the outlet is restricted, which is also why you should never let one run against a blocked or closed outlet. A deadheaded peristaltic pump simply keeps squeezing the tube, raising heat and wear for no benefit.

Suction is the more useful rating in practice. Because the pump will pull more than 60 kPa of vacuum at its inlet, it self-primes and it will draw water up from a reservoir that sits below or beside the machine. That removes the air-lock problems and the flooded-inlet requirement that come with a centrifugal pump, and it means the reservoir can be placed wherever it is convenient rather than wherever gravity allows.

Peristaltic, diaphragm or centrifugal: which type belongs on a printer

Choose peristaltic for self-priming, precise low flow and a fluid path you can replace in seconds. Choose diaphragm when you need more flow and pressure, and centrifugal only when the inlet can stay flooded.

The three families behave differently enough that the type decision usually matters more than the model number. The table below puts them side by side for a printer loop.

The SC2601RPW is a peristaltic pump, so the left column describes its behaviour. Sources: manufacturer pump-selection guidance; industry pump-type comparisons.

Peristaltic designs trade flow for cleanliness and control. A diaphragm pump will move more water for the same size, but it adds valves that wear, it pulses the flow, and it is generally louder. A centrifugal pump is the natural choice when you want the most litres per minute per watt, which is why PC water-cooling loops use them, but it expects a flooded inlet and loses effectiveness when it has to fight an air pocket. For a printer loop that you fill by hand, sits behind a cold plate and sometimes runs dry for a few seconds, the peristaltic compromise is usually the right one.

Matching the pump to four common printer builds

A hotend cold block and a laser cold plate fit the SC2601RPW. A sealed electronics bay does not, because that problem is air cooling rather than coolant.

The table below works from the heat source rather than the pump, which is the way round that keeps you honest about sizing.

Flow is calculated with the 14.3 x W / rise relationship; enclosure electronics guidance follows published filament-printer practice. Sources: manufacturer fluid-system guidance; Bambu Lab heat-creep documentation; engineering practice.

Two rows deserve a comment. Stepper motors are often the first thing people want to water-cool, and they are usually the last thing that needs it: a heatsink and moving air solve most stepper heat, and coolant only earns its place inside a sealed, hot chamber. Enclosure electronics are the opposite case. Published guidance for filament printers describes chambers held at around 60 to 70 °C and calls for actively cooled electronics, but the answer there is a fan and an enclosure rating, not a water loop.

Noise and service life as selection criteria

Treat the noise and life ratings as test conditions rather than promises. Both depend on how you mount, drive and service the pump far more than on the numbers alone.

Under 50 dB at 30 cm is measured in a defined setup, and the same pump can sound quite different in a machine. What you control is the mounting path: a pump bolted to a large rigid panel turns that panel into a speaker, while the same pump on silicone grommets is markedly quieter. The drive matters next, which is why a switching frequency in the 20 to 25 kHz band keeps the motor's tone out of hearing. Measure at 30 cm before and after each change rather than trusting the datasheet figure to describe your build.

The 1,000-hour life test is running time, and the tube is the part that reaches the end of it. Convert the figure to calendar time for your own duty: four hours a day is about eight months, eight hours a day about four months, and round-the-clock running under six weeks. If you need a pump for a machine that runs continuously, build the tube replacement into the maintenance plan from the start, or choose a design with a longer service interval.

Seven selection mistakes that cost a prototype

Almost every wrong pump choice comes from reading one number instead of the whole set. These are the seven that show up most often.

1. Buying on flow alone. The pump arrives, meets the flow target, and then will not pull water up from a reservoir below the machine. Check the suction rating before you buy, not after.

2. Buying on pressure alone. A high pressure figure says nothing about flow. Ask for the flow at the pressure you actually need, or for a flow-pressure curve.

3. Sizing to the nameplate flow. Published ratings come from a short test rig. Add 20 to 30% for tube length, bends, filters, valves and height difference.

4. Assuming 12 V is simply stronger. The versions share a flow band; the 12 V unit reaches the top of it at lower current. Voltage is about matching your rail, not about brute force.

5. Ignoring the duty cycle behind the life figure. A 1,000-hour test is running time. A machine that runs continuously will reach it in weeks, not years.

6. Under-volting to slow the pump down. Feeding a 12 V unit 6 V to reduce the flow shifts the motor off its design point. Use PWM and keep the rated voltage.

7. Hard-mounting the pump to a panel. Rigid mounting turns the enclosure into an amplifier. Isolate the bracket and the perceived noise drops without touching the pump.

Not sure which version your build needs? Send over the heat load, the rail voltage and the tube run, and we will match the variant, the tube material and the operating point. Ask us to specify the pump for your loop

The pre-order checklist

Before you place the order, confirm five things: the peak heat load, a 20 to 30% flow margin above it, the pump inlet pressure drop, the flow you can achieve at the lowest duty setting, and the supply rail you will use.

Peak heat load, in watts. Work out the watts, not the temperature. Add up the hotend, the laser module and any other cooled source, and size for the highest simultaneous total.

Required flow, with margin. Divide by 14.3 at a 10 °C rise, then add a fifth to a third of the result for real-world plumbing losses.

The loop, not just the pump. The pump is only as good as the circuit feeding it. A partly blocked cold plate can starve the flow even when the pump is oversized.

The minimum duty. Confirm the lowest useful flow. Below a certain duty the flow becomes hard to control, so check that your minimum cooling need is above it.

Voltage and current. Match the version to the rail, keep under 320 mA of headroom on the branch, and plan for PWM control rather than voltage reduction.

Frequently asked questions

What is the maximum flow rate of the SC2601RPW?

The datasheet rates the pump at 100 to 300 mL/min across the 6 V, 8 V, 10 V and 12 V versions, which is about 6 to 18 L/h. The highest figure belongs to the 12 V version at full duty, and you should plan to use 20 to 30% less than that after real plumbing losses.

Is the SC2601RPW self-priming?

Yes. It is a positive-displacement peristaltic pump with a suction rating above 60 kPa, so it will pull water into the head from a reservoir below the machine. Prime it anyway before long runs, because a dry tube heats and wears faster.

What pressure does the SC2601RPW produce in PSI?

More than 120 kPa is about 17.4 PSI, or 1.2 bar, which is roughly 12 m of water head. That is far more than a sealed printer loop needs, and it is the clearest sign that the pump is a positive-displacement design.

Which voltage version is best for a 3D printer?

The 12 V version, because it matches the printer's existing rail and reaches the top of the flow band while drawing under 320 mA. Use PWM to pick the working point rather than reducing the supply voltage.

Can the SC2601RPW cool a whole enclosed printer?

No. Its flow band covers roughly 70 to 210 W at a 10 °C rise, which is one hotend or one laser cold plate. Chamber heat and enclosed electronics are air-cooling problems, and adding a small coolant loop will not fix them.

Is a peristaltic pump the right choice for a printer cooling loop?

It is when you want self-priming, precise low flow and a fluid path you can renew by replacing a tube. If you need a lot of flow at low pressure and can guarantee a flooded inlet, a centrifugal pump will move more water for the same power.

Where this leaves you

The SC2601RPW is a low-flow, self-priming, positive-displacement pump, and every selection question follows from those three facts. Its 100 to 300 mL/min carries one hotend or one laser cold plate; its suction lets you place the reservoir wherever you like; and its pressure headroom means the loop is never the limiting factor. Pick the 12 V version for a printer, add margin to the flow figure, mount it softly, and treat the tube as a consumable.
