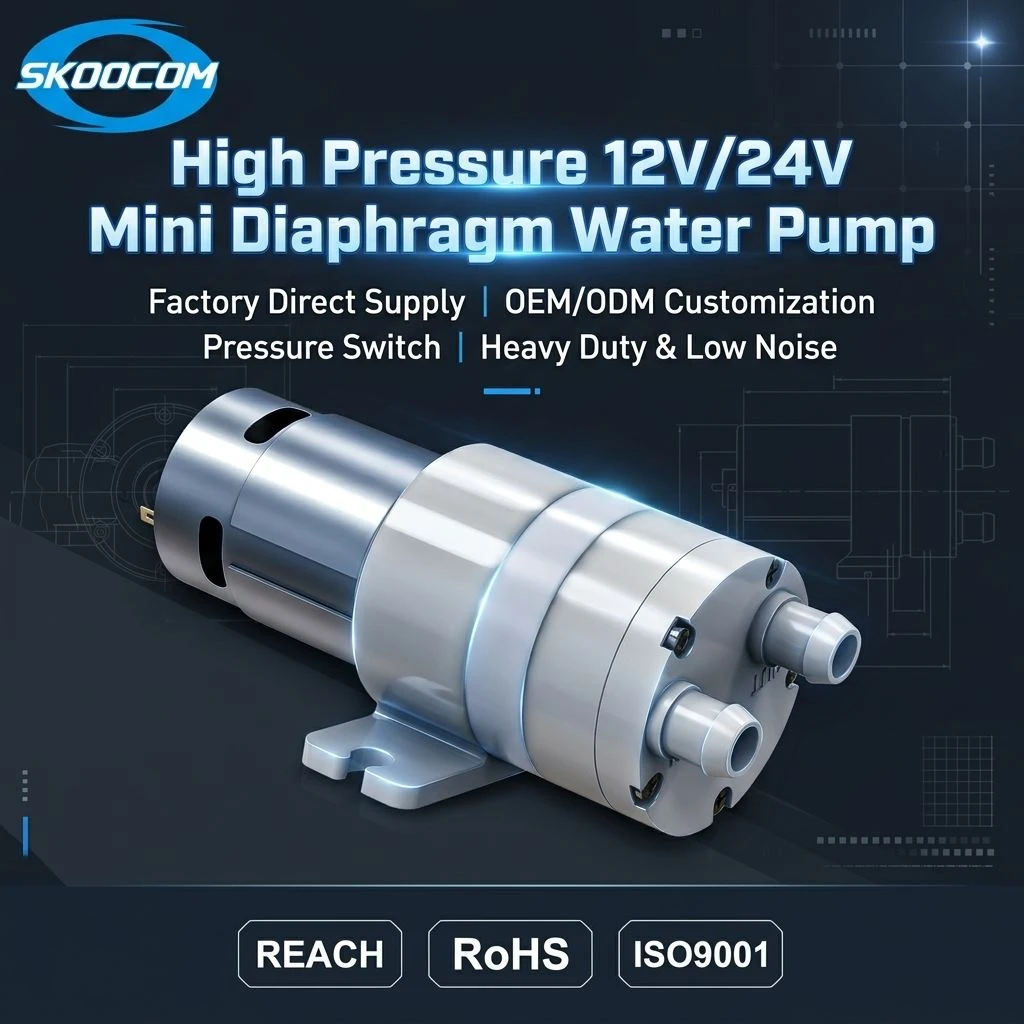

SC3601XPW High-Flow Self-Priming Miniature Diaphragm Water Pump (DC 6V / 12V / 24V)
Current Standard Model: SC3601XPW |Old model: SC3611PW (Direct Drop-in Replacement)
High-endurance miniature self-priming diaphragm water pump delivering >2.0 L/min flow rate, >1.0m dry suction lift, and ≥20 Psi (1.38 bar) discharge pressure. Engineered specifically for smart countertop water dispensers, instant-heat water bar machines, formula milk dispensers, countertop tea brewers, and reverse osmosis (RO) filtration systems requiring food-safe fluid pathways and continuous 120-second duty endurance.
Built for Smart Water Bars, Baby Formula Makers & Water Purifiers
-

>1.0 Meter Dry Self-Priming Lift: Effortlessly draws water upward from bottom-mounted reservoirs, under-counter canisters, or gallon jugs without manual priming or check-valve pre-filling.
Rapid >2.0 L/min Water Delivery: Fills a standard 250ml baby bottle or tea mug in under 8 seconds with smooth, non-pulsing laminar flow, eliminating user waiting fatigue.
Robust Pressure (≥20 Psi / 1.38 bar): Easily overcomes the fluid resistance of multi-stage composite filters, inline flow sensors, and thick-film instant-heating pipes without flow stalling.
120-Second Continuous Run Endurance: Certified for 15,000 cycles under an intensive 120s ON / 10s OFF duty protocol, easily handling multi-pitcher dispensing without thermal motor cutout.
Food-Contact Material Integrity: Wetted components utilize premium food-grade EPDM diaphragms and certified polymer pump heads, preventing plasticizers, BPA, and heavy metal leaching into drinking water.
Secure ø8.0mm Barbed Ports & 50mm Flange: Features robust 8.0mm barbed nozzles with clear IN/OUT directional markings, complemented by a 50mm mounting bracket for vibration-isolated screw fastening.
Technical Specifications
*Source: Verified from official Skoocom engineering drawing SC3601XPW (SC3611PW). Operating ambient: 0~50 °C, 75% RH. Dimensions follow standard engineering tolerances (±0.1mm to ±0.5mm).
| Parameter | DC 6.0V Spec | DC 12.0V Spec | DC 24.0V Spec | Test Conditions & Remarks |
|---|---|---|---|---|
| Current Standard Model | SC3601XPW | Latest production generation | ||
| Old Model | SC3611PW | 100% mechanical & mounting backward compatible | ||
| Rated Operating Current | < 1000 mA | < 800 mA | < 300 mA | Under full rated liquid delivery head |
| Liquid Output Flow Rate | > 2.0 L / min (Up to 2.3 L/min unconstrained at 0 Psi) | Tested with clean water at ambient temperature | ||
| Maximum Water Pressure | ≥ 20 Psi (≥ 137.9 kPa / 1.38 bar) | Shut-off head pressure threshold | ||
| Dry Self-Priming Suction Lift | > 1.0 meter (> 1m) | Dry suction without pre-filling liquid | ||
| Pump Discharge Head | > 1.0 meter (> 1m) | Vertical water column height capability | ||
| Operating Acoustic Noise | < 65 dB | Tested at 30 cm distance on damping pad (50-55 dB typical) | ||
| Service Life Testing | ≥ 15,000 cycles | Duty profile: 120s ON, 10s OFF continuous cycle | ||
| Applicable Fluid Media | Potable Drinking Water | Non-corrosive food-grade liquid circuit | ||
| Overall Envelope Dimensions | 74.5 ± 0.5 mm (L) × ø36.0 ± 0.3 mm (Head Ø) × 38.0 mm (Motor Width) | Rigid integrated body construction | ||
| Nozzle Geometry | Outer Diameter: ø8.00 ± 0.2 mm | Length: 11.0 ± 0.2 mm | Pitch: 18.25 ± 0.2 mm | Mated with 6.0×9.0mm or 7.0×10mm food-grade silicone tubing | ||
| Mounting Bracket Pitch | Mounting Pitch: 50.00 ± 0.3 mm | Holes: 2 × ø5.50 ± 0.1 mm | Integrated chassis mounting flange plate | ||
Application Focus: Precision Liquid Dispensing in Household & Commercial Appliances
1. Smart Instant-Heating Water Dispensers & Water Bars
Modern tabletop water bars require reliable water extraction from bottom-mounted concealed reservoirs. With >1.0m dry self-priming capability, SC3601XPW lifts water smoothly without airlock issues. The >2.0 L/min flow provides a robust supply to thick-film instant-heating tubes, ensuring a continuous, non-sputtering hot water stream.
2. Baby Formula Milk Makers & Bottle Warmers
Infant formula dispensers require strict food-grade fluid safety and rapid water delivery at set temperatures. SC3601XPW utilizes BPA-free, food-safe silicone and EPDM seals that impart zero odor or chemical residue. Its 10-second rapid cup filling helps parents prepare formula bottles in the middle of the night without waking the family.
3. Capsule Coffee Machines & Automated Tea Brewers
In automated tea brewers and commercial coffee dispensers, the pump must push water through dense tea-leaf baskets and inline purification filters. Delivering ≥20 Psi pressure, SC3601XPW maintains an even pressure head, ensuring uniform extraction and consistent beverage taste.
