Products Description

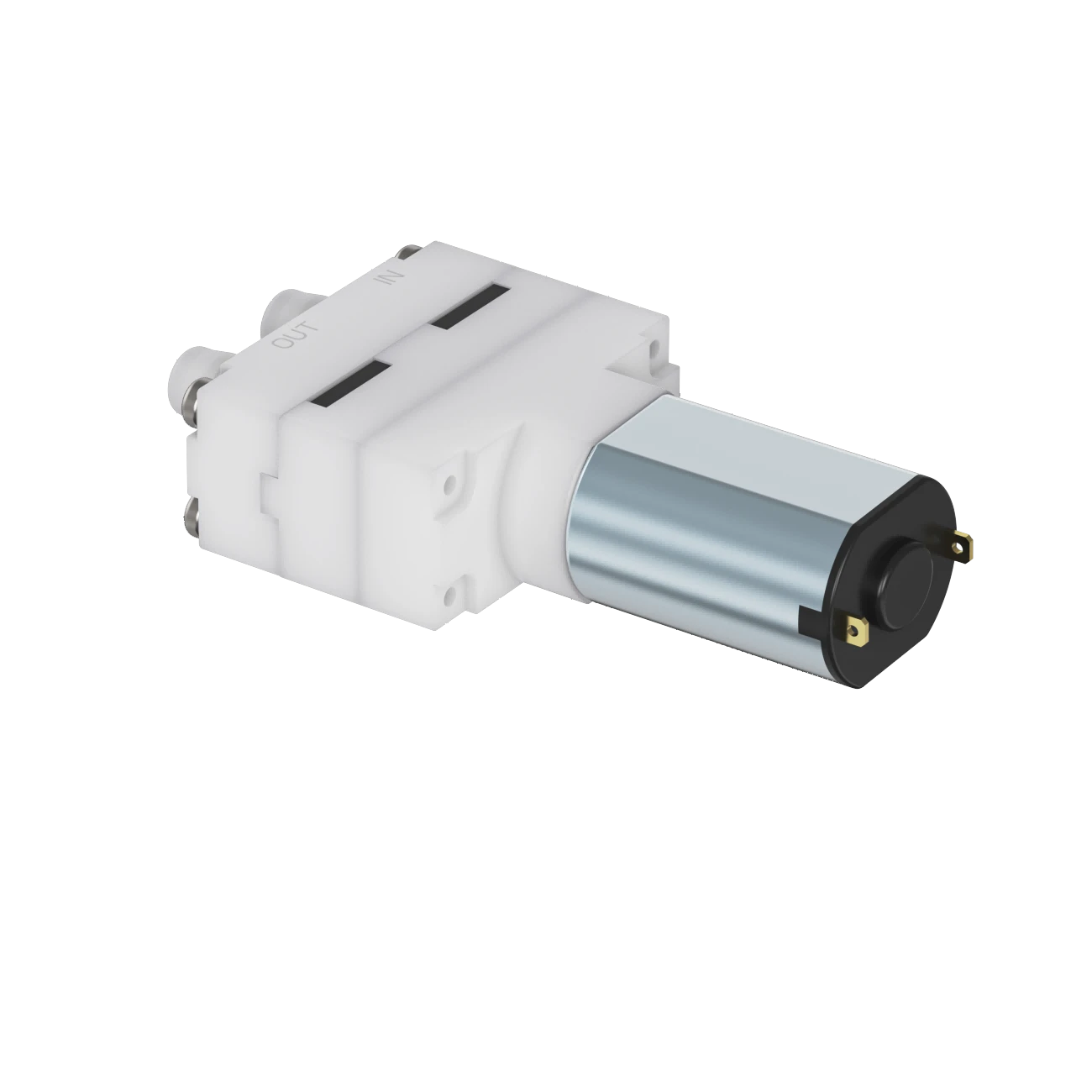

SC0801XPW Miniature DC Diaphragm Water Pump (3V / 6V) - Quiet, Long-Life, OEM Ready
The SC0801XPW (formerly SC3101PW) is a precision micro diaphragm water pump designed for embedded applications where space, noise, and power consumption are critical. Operating at DC 3.0 V or DC 6.0 V, it delivers a controlled flow of 40–60 mL/min at up to 3 Psi (15 kPa) - all within a compact footprint of just 18.0 × 10.3 × 32.5 mm.
Built and tested in Skoocom's own factory to 100,000 duty cycles, this pump is the go-to choice for R&D engineers and procurement managers sourcing a reliable, low-noise liquid pump for consumer electronics and medical-grade devices.
Key Specifications
| Parameter | ||
|---|---|---|
| Rated Voltage | DC 3.0 V | DC 6.0 V |
| Rated Current | ＜200 mA | ＜150 mA |
| Water Flow | 40–60 mL/min | 40–60 mL/min |
| Max Pressure | ≥3 Psi (15 kPa) | ≥3 Psi (15 kPa) |
| Noise Level | ＜60 dB (30 cm away) | ＜60 dB (30 cm away) |
| Medium | Water | Water |
| Lifetime | 100,000 cycles (5s on / 5s off) | |
| Working Environment | 0–50 °C, ≤75% RH | |
| Dimensions (L×W×H) | 32.5 × 14.0 × 18.0 mm | |

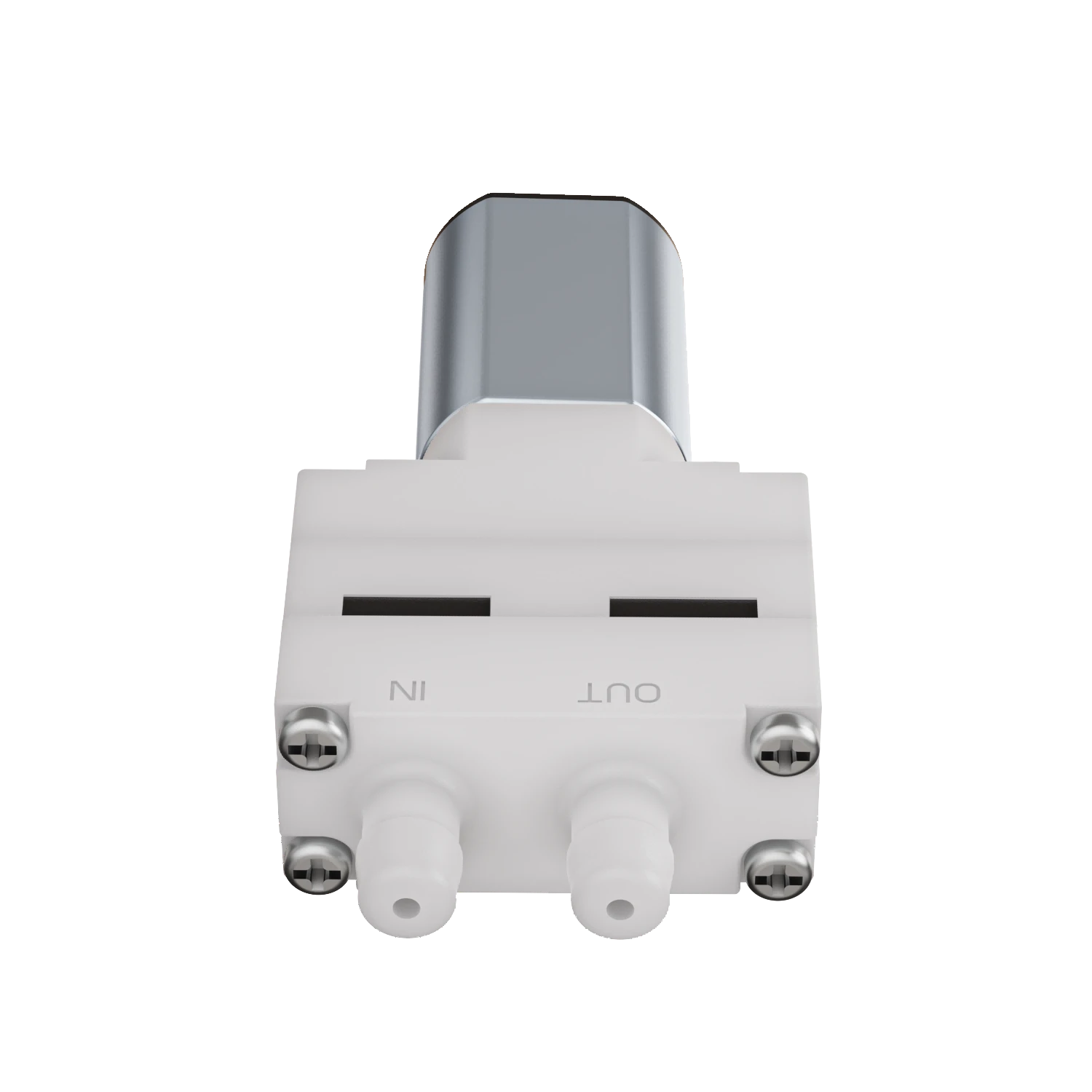

| Outlet / Inlet Diameter | Ø3.5 mm | |
| Certifications | RoHS, REACH, ISO | |
Why Choose SC0801XPW - 5 Engineering Advantages
1.Quiet Operation: ＜60 dB
At 30 cm, the SC0801XPW measures below 60 dB - quieter than a typical library environment. This makes it the preferred choice for bedroom-use beauty devices, sleeping aids, and personal medical instruments where any motor noise disrupts the user experience.
2. Battery-Friendly Dual Voltage (3V & 6V)
Direct compatibility with 3.7 V Li-ion cells (via slight under-drive at 3V) and USB-5V step-down circuits (6V mode). No additional DC conversion stage required, saving BOM cost and PCB space in your product design.
3. Proven 100,000-Cycle Lifespan
Validated under continuous 5s-on / 5s-off duty cycle testing - equivalent to 13+ years of daily 1-hour use. Skoocom's in-house life-test data is available upon request for IEC/CE certification support.
4. Precision Flow for Sensitive Applications
At 40–60 mL/min, the SC0801XPW delivers the fine-grained flow control required by facial essence dispensers, wound irrigation devices, and lab microfluidic instruments - not the brute-force flow of industrial pumps.
5. Compact Footprint: Fits Where Others Don't
The 32.5 × 14.0 × 18.0 mm body fits standard sweeping-robot liquid modules and compact handheld beauty devices. Mounting holes and laser-etched serial codes enable automated assembly and traceability.
Typical Application Scenarios
| Industry | Device Type | Why SC0801XPW Fits |
|---|---|---|
| Consumer Electronics | Sweeping robot water tank, floor cleaner | Compact body, low noise, 6V USB-power compatible |
| Personal Beauty | Facial mist sprayer, micro-current essence pump, home hydro-facial device | Precision mL-level flow, quiet enough for bathroom use |
| Medical / Healthcare | Portable wound irrigator, wearable drug-delivery module | Validated lifetime, water-safe medium, RoHS/REACH compliant |
| Lab & Instrumentation | Microfluidic test bench, reagent dispenser | Stable 40–60 mL/min, low pulsation at low pressure |
| Smart Home | Mini humidifier, desktop water feature | Low current draw extends battery life |
Company Introduction

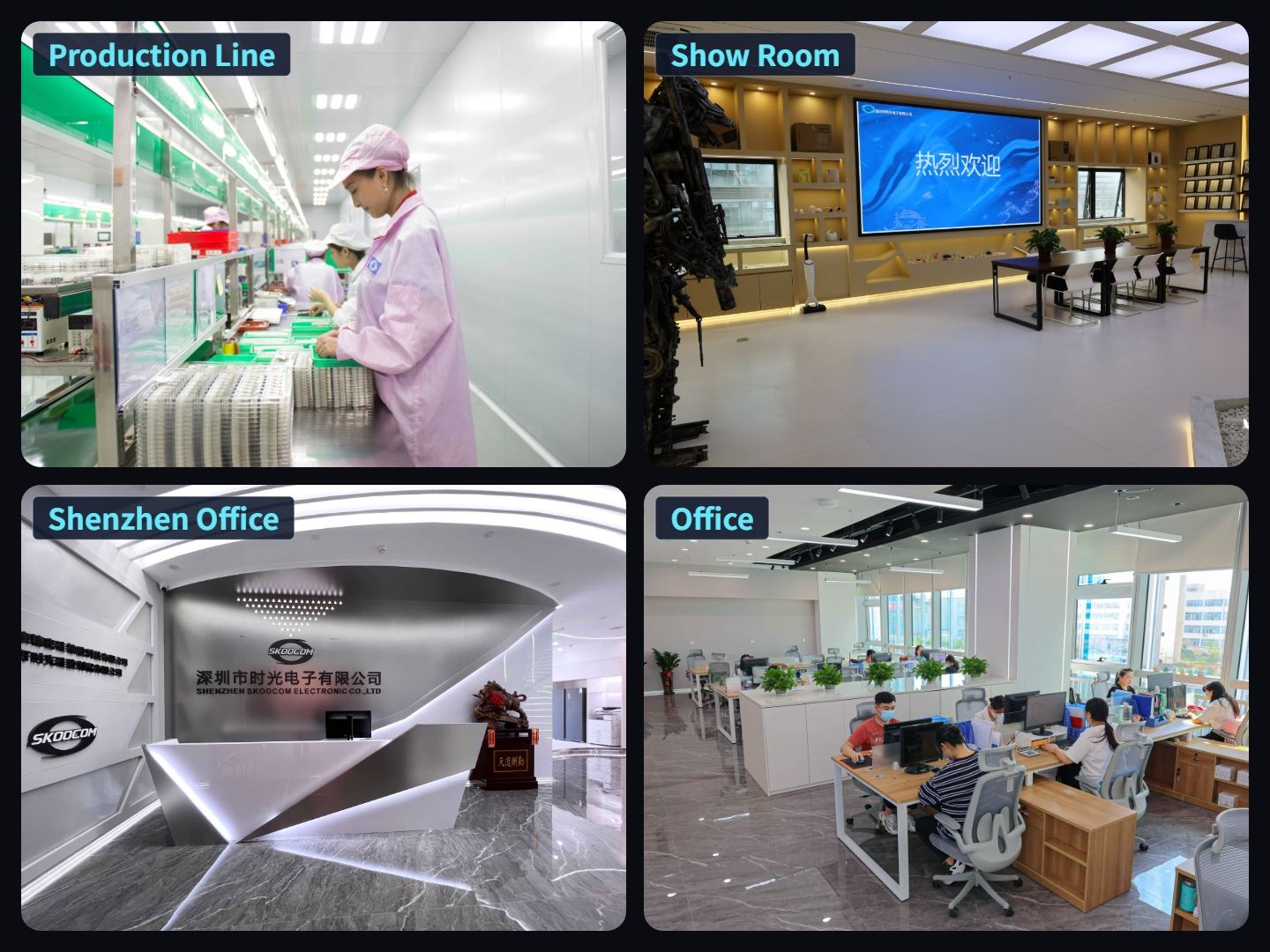

About SKOOCOM
Founded in 1998, Shenzhen Skoocom Electronic Co., Ltd. is a national high-tech enterprise with in-house R&D, precision manufacturing and global marketing capabilities. In 2022 and 2025, it was twice awarded the title of National "Little Giant" Enterprise (Specialized, Refined, Unique, and Innovative) by the Ministry of Industry and Information Technology of China. Skoocom focuses on the R&D and production of various types of micro pumps, solenoid valves, and electromagnets, providing professional micro pump and valve solutions and related supporting technical services to enterprises in the fields of medical devices, AI smart home appliances (such as cleaning robots, learning, entertainment and lifestyle robots, 3D printers, smart toilets, kitchen appliances, coffee machines, water purifiers), maternal and child products, medical aesthetics and health, and laboratory research.
Certifications & Compliance

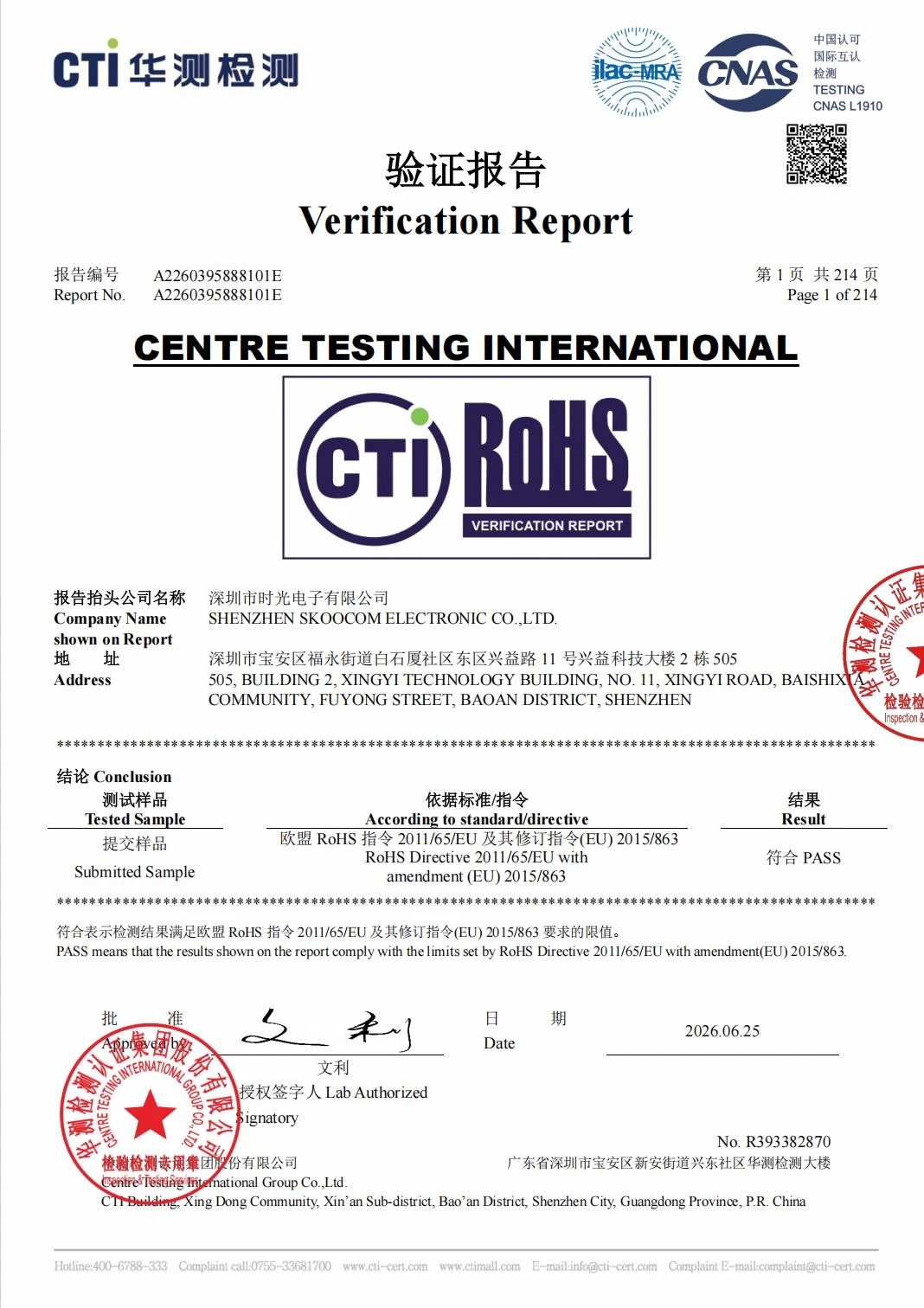

✅ RoHS - Restriction of Hazardous Substances (EU Directive)
✅ REACH - Registration, Evaluation, Authorisation of Chemicals

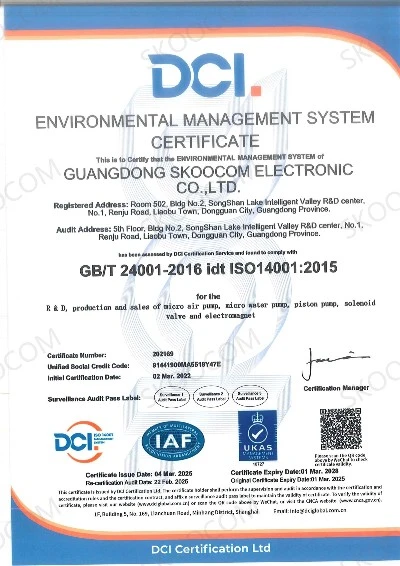

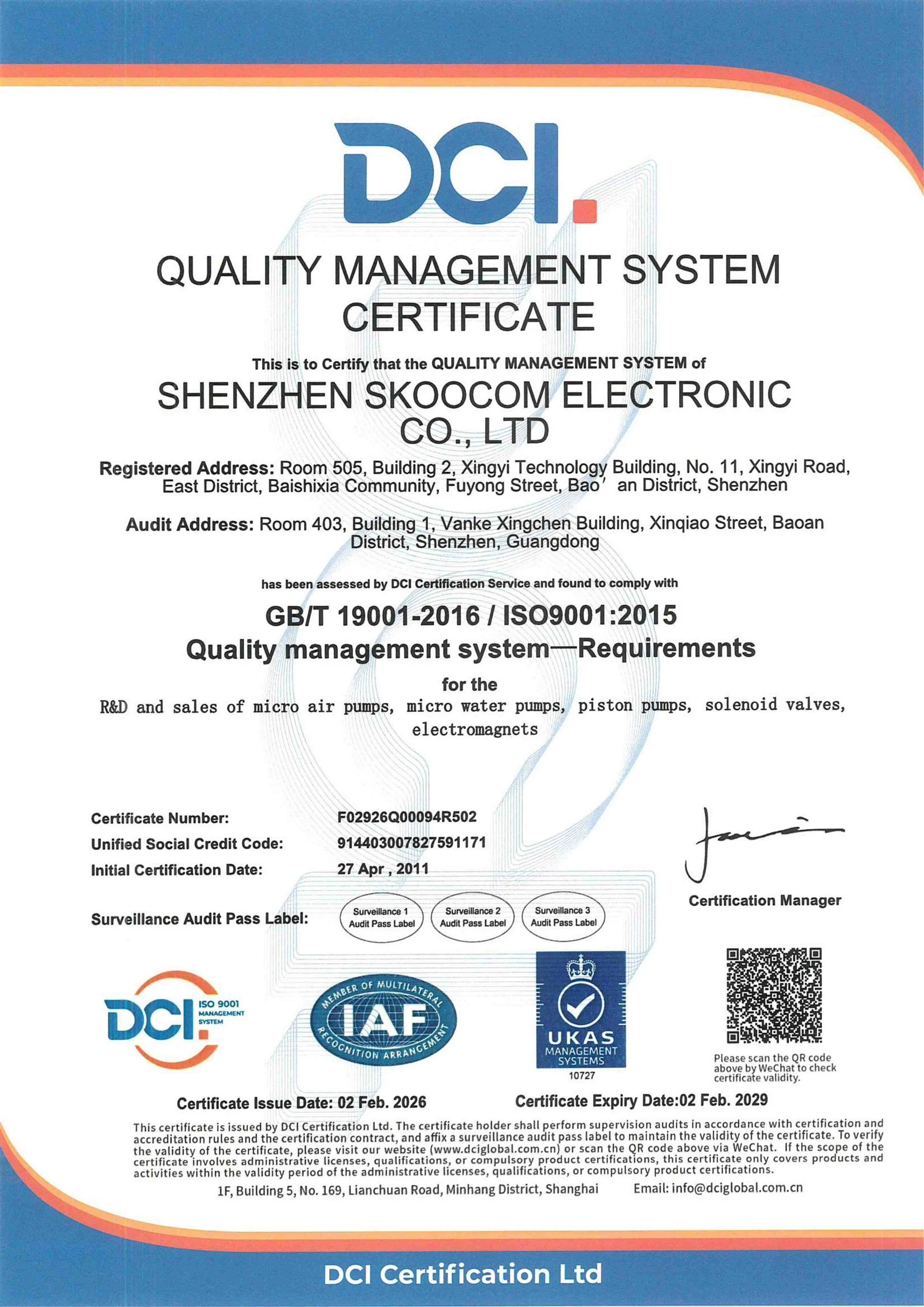

✅ ISO - Quality management system certified

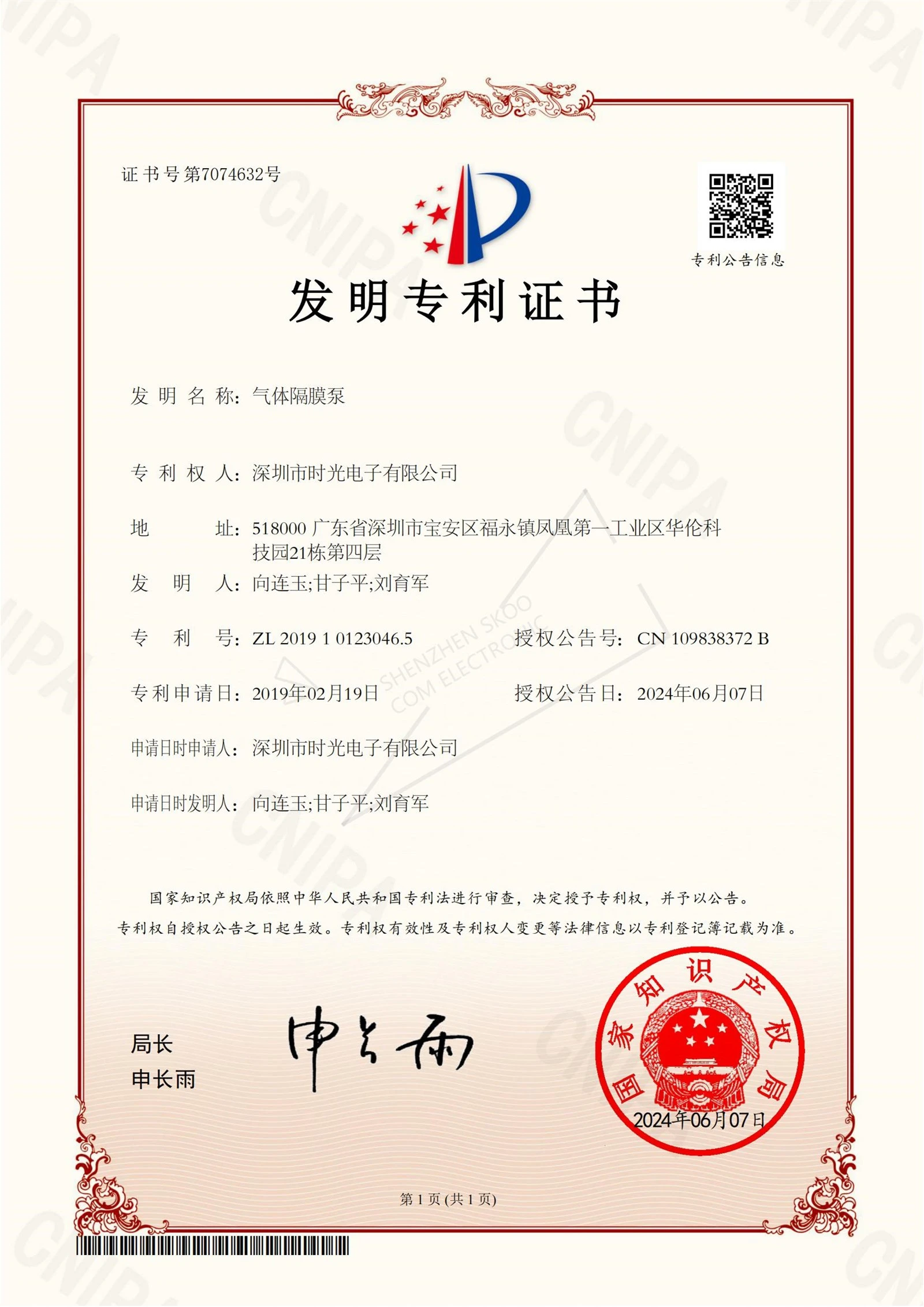

✅ 200+ Invention Patents - Skoocom holds proprietary diaphragm pump designs
✅ China Top 10 Pump & Valve Manufacturer - Ranked by industry association
Our Certificate
