Mini Water Solenoid Valve SC0626CVW
| Parameter | Specification |
| Structure | 2-position 3-way |
| Mode | Normally closed |
| Rated Voltage | DC 5.0V, DC 12.0V, DC 24.0V |
| Rated Current (corresponding) | 370mA (at 5V) / 330mA (at 12V) / 90mA (at 24V) |
| Resistance (corresponding) | 13.5Ω±10% (5V) / 36Ω±10% (12V) / 260Ω±10% (24V) |
| Maximum Pressure | 80 kPa |
| Flow | Water >700 mL/min |
| Leakage | 3mmHg/min from 300mmHg at 100CC tank |
| Insulation Level | Class A |
| Medium | Water |
| Lifetime Test | 200,000 cycles |
| Working Environment | 0 ~ 50 °C, 75% RH |
The DC 5V/12V/24V Mini Water Solenoid Valve is a compact and efficient solution for controlling water or air flow in various systems. With its low power consumption and reliable performance, it's perfect for applications such as irrigation systems, water pumps, air compressors, and HVAC systems.
Key Features & Advantages:
Lorem ipsum dolor sit amet consectetur, adipisicing elit
Versatile Voltage Options
Available in 5V, 12V, and 24V versions to suit different setups.
Compact Design
Space-saving and easy to install in tight spaces.
Durable & Reliable
Built for long-lasting performance in water and air flow control.
Low Power Consumption
Efficient energy usage ensures cost-effectiveness.
Applications:
- Automated irrigation systems
- Water pump control
- Air compressor systems
- HVAC systems
- Home automation and robotics
Product Introduction
The SC0626CVW is a miniature DC solenoid water valve designed for water dispensers, coffee machines, water purifiers, smart beverage equipment, and food-grade liquid dispensing systems. Featuring a diaphragm structure, the fluid does not pass through the valve core - instead, it flows only through the valve body channel, effectively preventing direct contact between metal components and the liquid, ensuring hygienic safety during transport. It is particularly suitable for precise control of potable water, beverages, and other edible liquids. Supporting multiple voltage platforms including 5V, 12V, and 24V, it adapts to various power supply systems. Constructed with high-quality food-grade corrosion-resistant materials, it meets hygiene and safety standards with no leaching or contamination over long-term use. Rigorous durability testing qualifies it for high-frequency start-stop cycles. We also offer flexible customization of interface and mounting to accelerate your product integration.

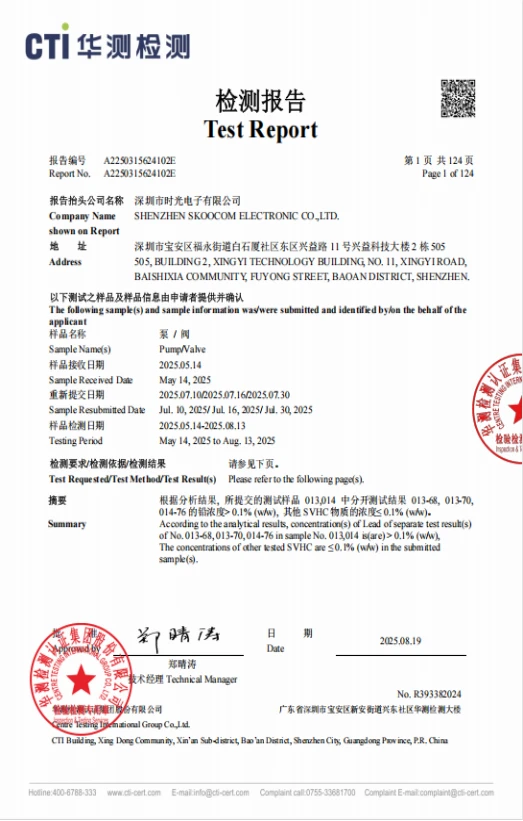

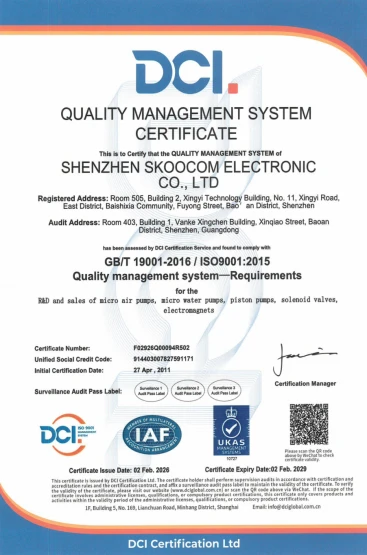

certificates
certificates
Company Info
Shenzhen Skoocom Electronic Co., Ltd., founded in 1998 and headquartered in Shenzhen, is a national high-tech enterprise integrating independent R&D, precision manufacturing, and global sales. The company specializes in the development and manufacturing of micro pumps, solenoid valves, and electromagnets, with products widely used in medical devices, AI-powered smart home appliances, baby products, medical aesthetics, and laboratory research. Recognized for its continuous innovation and reliable quality, the company was twice named a "Specialized and Sophisticated 'Little Giant' Enterprise" by the Ministry of Industry and Information Technology in 2022 and 2025. Headquartered in Shenzhen, with manufacturing bases in Songshan Lake Smart Valley (Dongguan) and Zhong'an Industrial City (Zhaoqing), the company owns over 50,000 square meters of self-owned factory space, employs more than 500 people, and operates multiple modern production lines with an annual capacity of 50 million units. Committed to technology and quality, Skoocom Electronic provides reliable miniature fluid control solutions to customers worldwide.
FAQ
Q1: What devices is the SC0626CVW suitable for?
A1: It is suitable for water dispensers, coffee machines, water purifiers, smart beverage dispensers, food-grade liquid dispensing systems, automatic drink mixers, and various applications requiring hygienic liquid control.
Q2: What is special about the flow path design of this valve?
A2: The valve features a diaphragm structure where the fluid does not pass through the valve core - instead, it flows only through the valve body channel. This effectively prevents direct contact between metal components and the liquid, eliminating metal ion leaching or corrosion contamination, ensuring hygienic safety during transport - particularly suitable for potable water, beverages, and other edible liquids.
Q3: What are the advantages of the normally closed design?
A3: Normally closed means the valve remains off when de-energized, blocking fluid flow. This design automatically shuts off flow when idle, preventing accidental leakage while saving energy - especially suitable for water and beverage equipment requiring long-term standby.
Q4: Can this valve be used for hot liquids?
A4: The standard configuration is designed for ambient and medium-low temperature liquids. For hot water or high-temperature liquids, please consult us for high-temperature material customization options.
Q5: Is the response fast enough for quick water dispensing?
A5: Yes, the valve features a direct-acting electromagnetic structure that opens rapidly upon energization with extremely short response time - meeting the quick-dispensing needs of water dispensers, coffee machines, and similar devices, ensuring a smooth user experience.
Q6: Are the materials compliant with food-grade hygiene standards?
A6: Yes, the valve body uses high-quality food-grade corrosion-resistant materials. All wetted parts comply with food contact material standards, with no leaching or contamination over long-term use - safe for drinking water and food-grade liquids.
Q7: Can it run continuously for long periods?
A7: The valve is designed for intermittent duty and has passed extensive life testing. For extended continuous energization or specific duty cycles, please consult us for evaluation.
Q8: What voltage options are available?
A8: Standard options include DC 5V, 12V, and 24V, compatible with various power systems such as USB power, adapters, or battery packs.
Q9: Is customization available?
A9: Yes, we offer flexible customization of voltage, inlet/outlet sizes, mounting brackets, electrical connectors, and more to quickly adapt to your specific system requirements and accelerate development.
Q10: What maintenance is recommended?
A10: We recommend periodic checks of tube connections, keeping fluid clean, and preventing debris from clogging the valve body. For poor water quality, install an inlet filter to prevent particles from affecting sealing performance.
Q11: How can I get samples or technical support?
A11: Contact us via email; our professional team will respond within 1 hour on business days, offering selection advice, sample testing, and system integration guidance.
