Shenzhen Skoocom Electronic Co.,Ltd is one of the leading manufacturers and suppliers of micro air valve 4.5v for massager in China. We provide high quality products for medical devices and beauty appliance. Welcome to wholesale RoHS, REACH and ISO certified products made in China here and get quotation from our factory. Also, custom service and ODM service are available.
Solenoid valve is mainly used for household appliances and maternal and child products, scientific research, etc. More can contact us for customization, we have a special electromagnetic valve on the massager

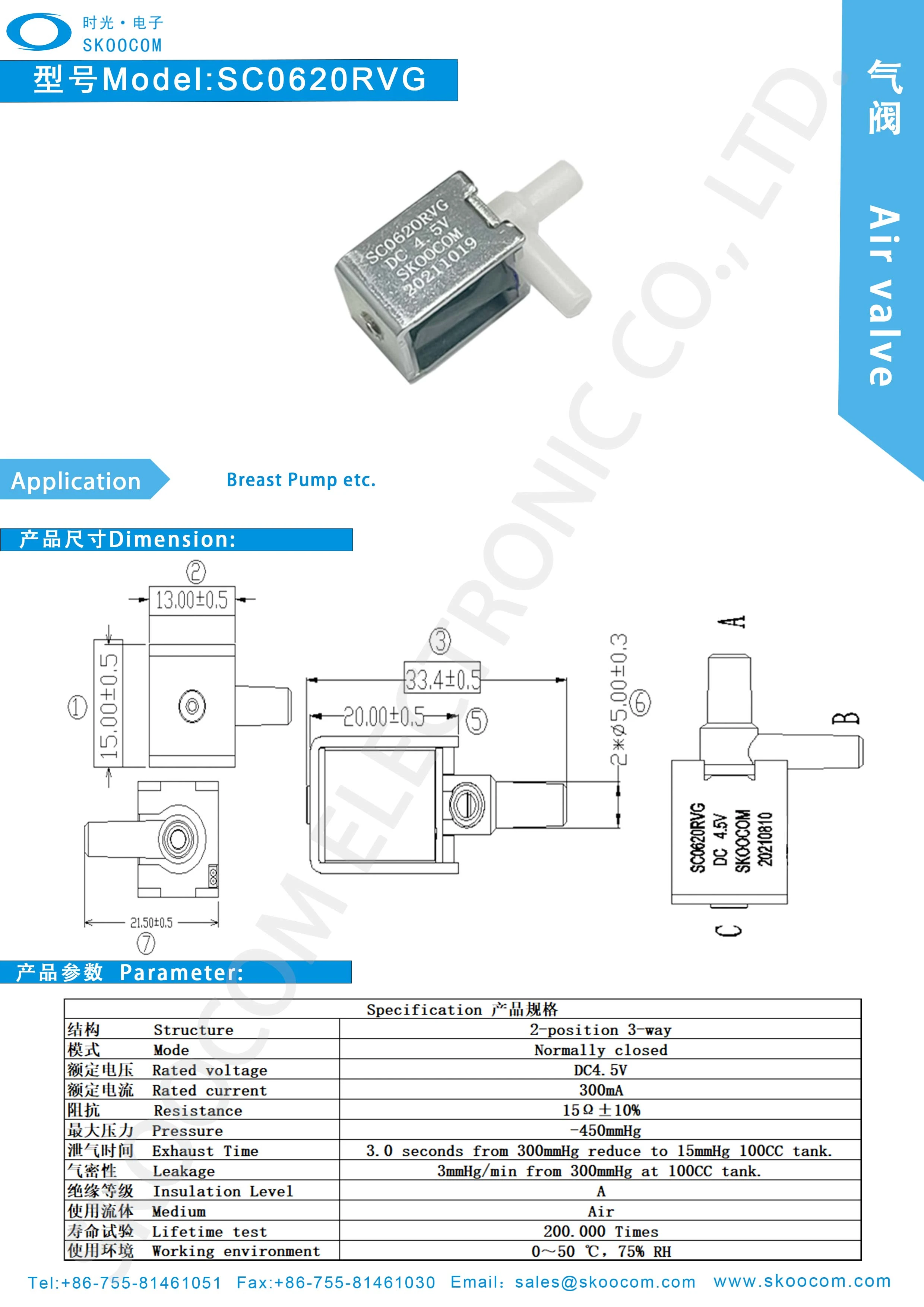

Model: SC0620RVG
| Specification 产品规格 | ||||
| 结构 Structure | 2-position 3-way | |||
| 模式 Mode | Normally closed | |||
| 额定电压 Rated voltage | DC4.5V | |||
| 额定电流 Rated current | 300mA | |||
| 阻抗 Resistance | 15Ω±10% | |||
| 最大压力 Pressure | -450mmHg | |||
| 泄气时间 Exhaust Time | 3.0 seconds from -300mmHg reduce to -450mmHg 100CC tank. | |||
| 气密性 Leakage | 3mmHg/min from -200mmHg at 100CC tank. | |||
| 绝缘等级 Insulation Level | A | |||
| 使用流体 Medium | Air | |||
| 寿命试验 Lifetime test | 200.000 Times | |||
| 使用环境 Working environment | 0～50 ℃，75% RH | |||
The above is a brief introduction of our products. Our air valve is a miniature air valve, which is used for massager and other products. We have a variety of air valves and water valves, air valves are normally open and normally closed. SC0620RVG this air valve is normally closed, open when power, power off when closed. We used 4.5V DC current in the test and got a life of 200.000 Times
SKOOCOM is a high-tech enterprise, specializing in the production of micro pumps and solenoid valves, can provide customized requirements, can be designed according to the parameters, you can contact us for customization.
