Shenzhen Skoocom Electronic Co.,Ltd is one of the leading manufacturers and suppliers of micro air valve 2-way normally closed in China. We provide high quality products for medical devices and beauty appliance. Welcome to wholesale CE approved and ISO certified products made in China here and get quotation from our factory. Also, custom service and ODM service are available.

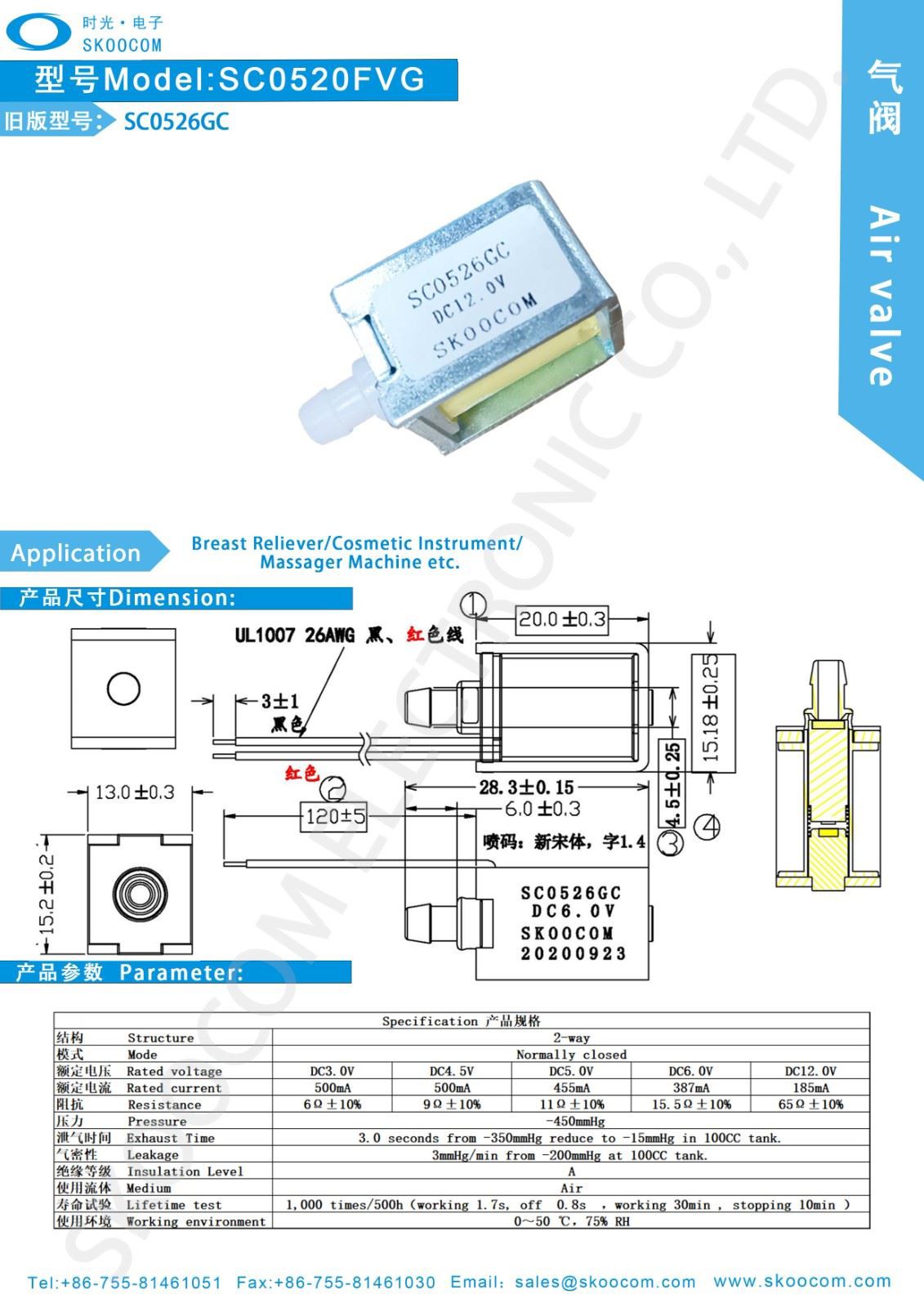

Model :SC0520FVG(SC0526GC) his air valve belongs to 2-way ,It is a normally closed miniature air valve. The voltage of this miniature air valve is 3V-12V. This kind of air valve is different from other miniature air valves,This miniature air valve is a negative pressure air valve,The negative pressure valve was used to test the deflating time：3.0 seconds from -350mmHg reduce to -15mmHg in 100CC tank.
Experimental life test of miniature air valve：1,000 times/500h(working 1.7s, off 0.8s ,working 30min , stopping 10min )
Abnormal test of miniature air valve： There is no burning and smoking occurrence while the power is on with DC 6.0V for 1 hours continuously.
We will test the appearance, size and function of the miniature air valve to ensure that there is no problem in shipment
Dielectric voltage:Connecting with AC 500V(50/60Hz)at 1mA for one minute,if the coil and non-charge metal are not passing through,then one seconds later,AC 600V is adoptable to the valve
The lead tension:No abnormality occurs when a 0.5Kg static is hanging in the parallel direction of the lead wire for one minute.
Leakage:When powered off,the valve'leakage is lower than -3mmHg/Min in a 100CC tank with the pressure -150mmHg.
Application areas can be used in medical equipment, health care equipment, household appliances, kitchen bathroom, beauty instruments, etc
Hot Tags: micro air valve 2-way normally closed manufacturers, suppliers, factory, customized, air release valve, air solenoid valve, exhaust valves, micro air valve, Solenoid Valve for Breast Pump, two way valve
