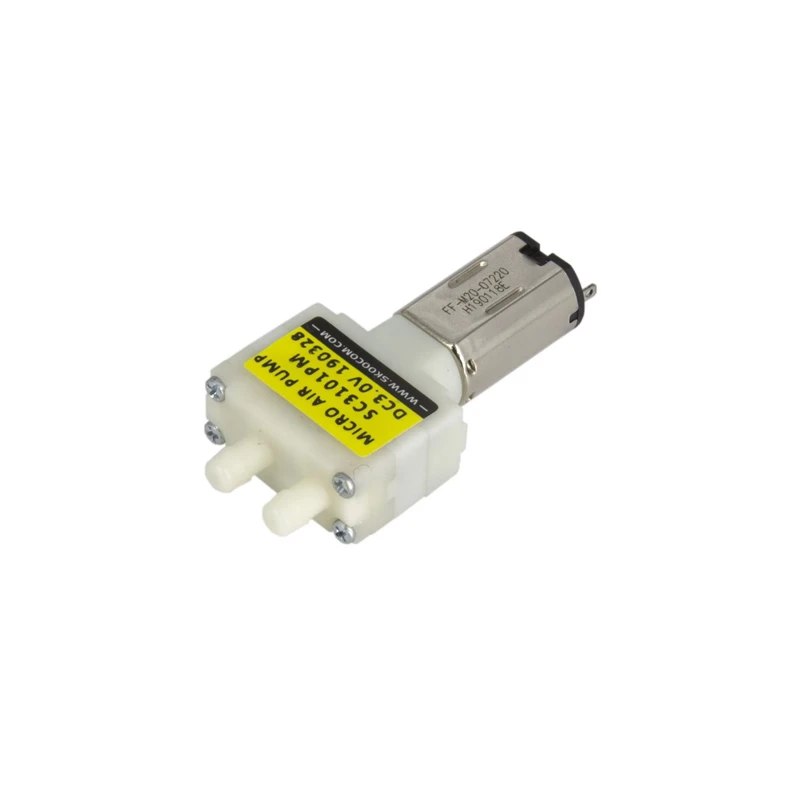

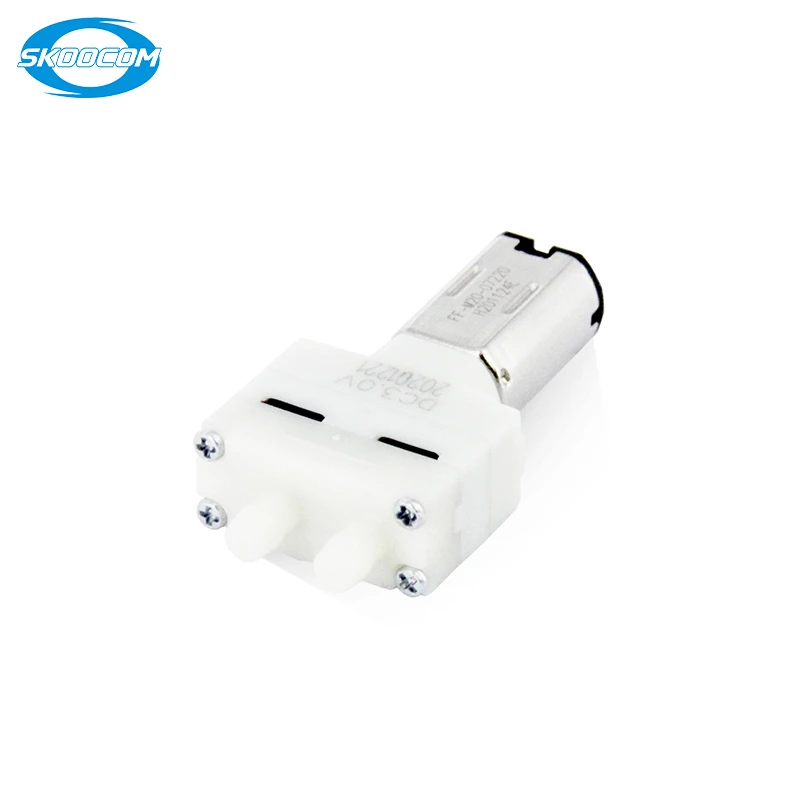

SC3101PM Silent Miniature Air Pump for Steam Straighteners
Ultra-compact DC 3.0V / 6.0V diaphragm air pump engineered for handheld steam styling tools and personal care electronics requiring precision micro-pressure airflow.
Engineered for High-End Hair Styling Hardware
- Thumb-Drive Profile (32.5 × 18.0 × 10.0 mm): Ultra-narrow footprint designed specifically to integrate into tight ergonomic handles of handheld steam straighteners and curling irons.
- Acoustic Quietness (≤55 dB @ 30cm): Low-vibration diaphragm motor reduces near-ear mechanical buzz, satisfying salon-grade acoustic expectations.
- Battery-Friendly Low Current: Operating current <350 mA (at 3.0V) and <150 mA (at 6.0V), minimizing thermal buildup inside enclosed plastic casings.
- Stable Steam Atomization Pressure: Delivers continuous positive pressure >300 mmHg and airflow >400 mL/min, eliminating water spitting and ensuring even vapor dispersal.
- Extended Operating Endurance: Rated for over 30,000 cycles (10s on / 7s off) with proprietary heat-resistant rubber diaphragms.
-
Technical Specifications
*Note: Operating test condition: 20°C ± 5°C, Relative Humidity 65% ± 20%.
| Parameter | Specification (3.0V Model) | Specification (6.0V Model) | Test Condition / Remark |
|---|---|---|---|
| Model / Part Number | SC3101PM | Micro positive/vacuum diaphragm pump | |
| Rated Voltage | DC 3.0V | DC 6.0V | Customizable: 3.7V / 5.0V / 12V upon request |
| Rated Current | < 350 mA | < 150 mA | At rated voltage under operating load |
| Air Flow Rate | > 400 mL/min (> 0.4 L/min) | Unrestricted free flow rate | |
| Max Positive Pressure | > 300 mmHg | Peak inflation pressure | |
| Inflation Time | < 15 seconds | From 0 to 200 mmHg in a 100cc tank | |
| Operating Noise | ≤ 55 dB | Measured 30 cm away with sponge pad cushion | |
| Air Tightness (Leakage) | < 3.0 mmHg / min | From 200 mmHg in a 100cc tank | |
| Life Expectancy | ≥ 30,000 cycles | Duty cycle: 10s running, 7s resting | |

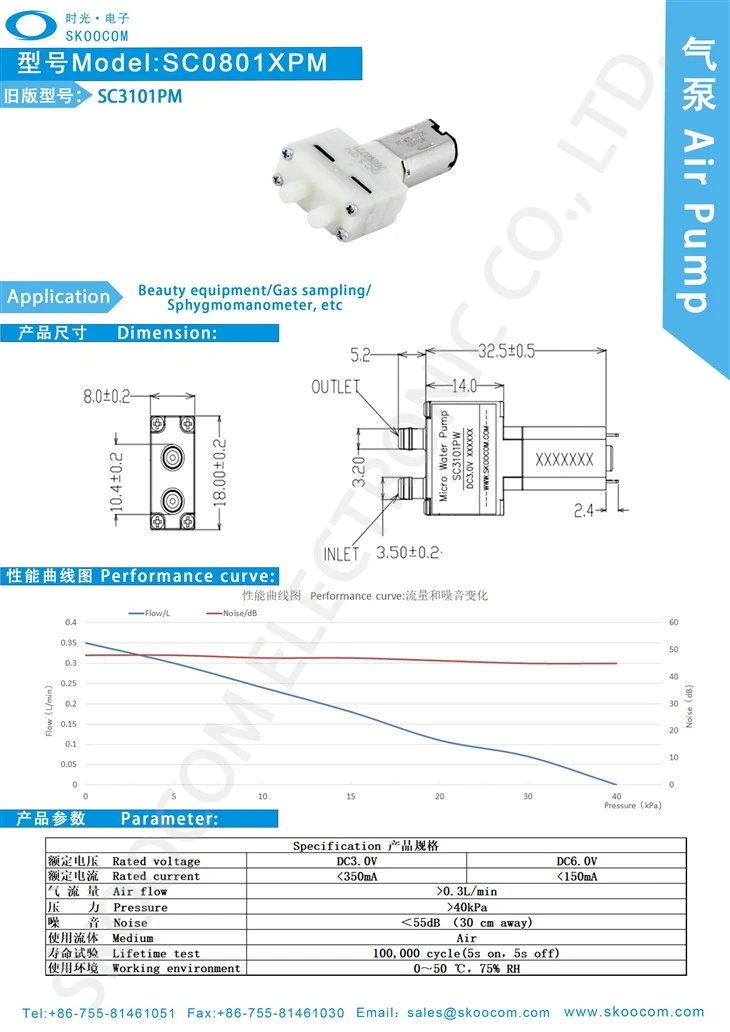

| Dimensions (L × W × H) | 32.5 × 18.0 × 10.0 mm | *Note: Dimensions verified against engineering drawing sheet. Customer design must account for mounting tolerances. | |
| Applicable Media | Air | Clean, non-corrosive air | |
Application Analysis: Why Steam Straighteners Rely on SC3101PM
The Challenge in Modern Steam Straighteners
High-end steam hair straighteners use micro-droplet steam infusion to hydrate hair cuticles during heat styling. However, passive capillary heating tubes frequently suffer from steam condensation droplets or erratic vapor spitting when moved rapidly. Integrating an active micro air pump solves this by pressurizing the internal reservoir, ensuring uniform, non-stop steam delivery through the heating chamber.
How SC3101PM Solves Hardware Pain Points:
- Handle Ergonomics: Weighing less than standard pump modules, SC3101PM minimizes overall tool center-of-gravity shifts, preserving lightweight balance for home and salon users.
- Thermal Resistance: Equipped with Skoocom's proprietary rubber diaphragm formula, the pump withstands internal ambient heat radiated from heating plates without diaphragm hardening or pressure degradation.
- Pulse-Free Vapor Dispersion: Optimized diaphragm stroke maintains a laminar flow, preventing vapor stuttering and hot water spatter that can scorch hair cuticles.
Company introduction
About skoocom

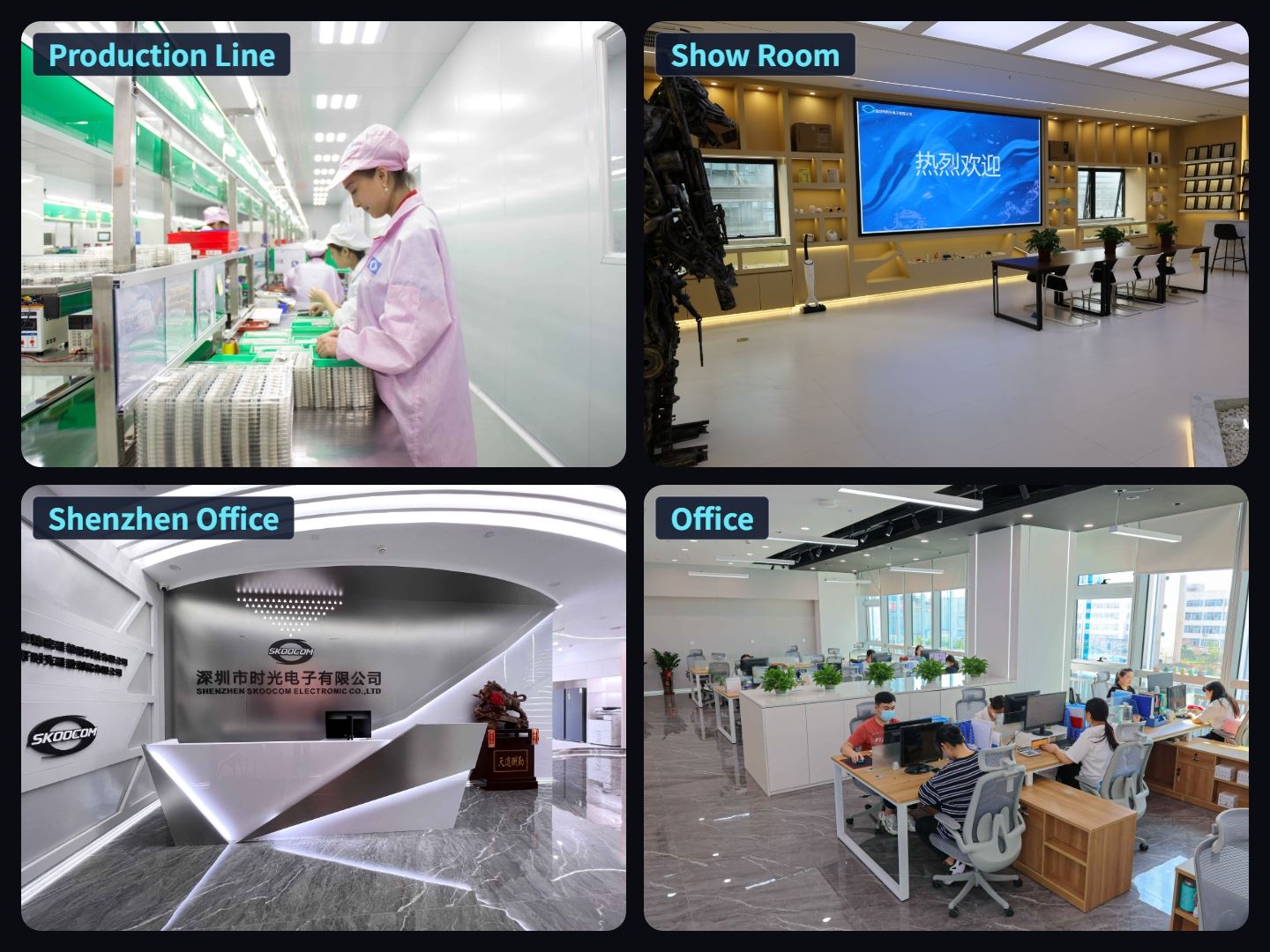

Manufacturing Capability

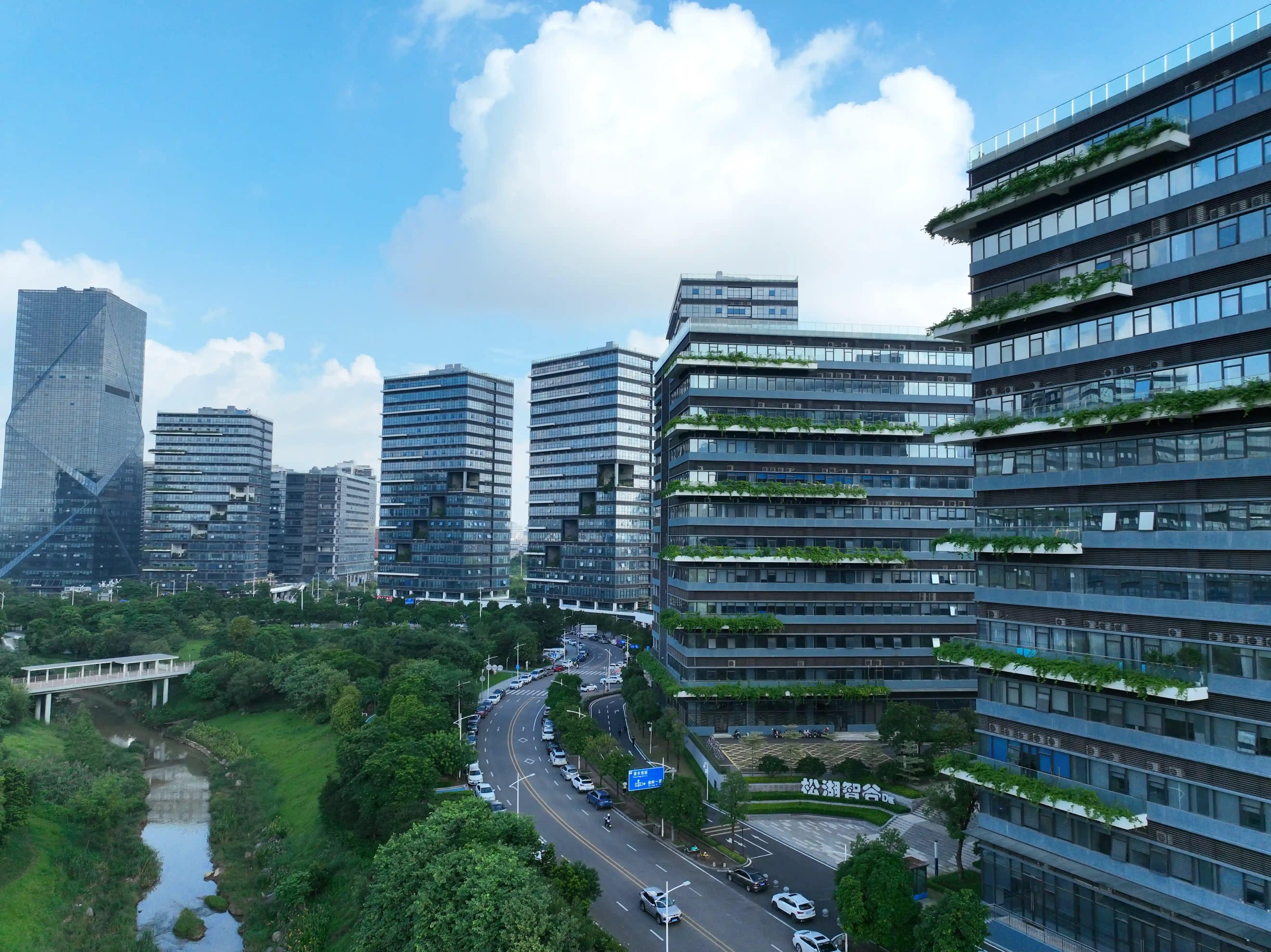

Established in 1998, Shenzhen Skoocom Electronic Co., Ltd. is recognized as a National "Little Giant" enterprise specializing in precision fluid control components. We serve over 1,500 global clients across beauty, healthcare, and industrial automation sectors.
Self-Sustained Tooling & Rubber Vulcanization
Unlike assemblers who outsource core components, Skoocom operates dedicated mold tooling and rubber vulcanization workshops with 30+ precision injection machines. Our custom-formulated EPDM and silicone rubber diaphragms achieve medical/food-grade hygiene and extreme thermal endurance.
Quality Assurance
Certified Clean Production
Operating under ISO 9001 certified quality management systems, our products comply with RoHS, REACH, CE, and FDA safety directives. Every SC3101PM unit undergoes 100% airtightness, noise, and pressure bench testing before packing.
OEM / ODM Customization Support
We provide comprehensive design support, including customized nozzle port angles, connector lead-wire lengths, voltage adaptations (DC 3V/3.7V/5V/6V), and tailored rubber hardness to match your exact pressure profile.
Our Certificate
FAQ
Q: Can SC3101PM Be Directly Driven By A Single-Cell Lithium Battery (3.7V)?
A: Yes. While standard nominal options are 3.0V and 6.0V, the 3.0V DC configuration operates smoothly within the 3.0V–4.2V range of single-cell Li-ion batteries. We can also provide fine-tuned motor windings to optimize current draw at 3.7V.
Q: What Is The Noise Level When Integrated Inside An Enclosed Styling Handle?
A: The bare pump emits ≤55 dB at 30 cm. When installed with silicone mounting brackets inside an enclosed plastic casing with acoustic dampening foam, operating sound typically drops below 45 dB.
Q: Does SC3101PM Pump Water Or Steam Directly?
A: No. SC3101PM is a gas pump designed to deliver dry micro-air pressure into the sealed water tank or vapor chamber. It must not ingest liquid water. For direct liquid pumping, please reference our micro water pump series (e.g., SC0802XPW).
Q: What Is The Minimum Order Quantity (MOQ) And Sample Lead Time?
A: Standard evaluation samples are available within 3–5 working days. For bulk production orders, MOQ is typically 1,000 pieces with standard lead times of 15–25 days.
