Shenzhen Skoocom Electronic Co.,Ltd is one of the leading manufacturers and suppliers of air pressure pump for beauty care in China. We provide high quality products for medical devices and beauty appliance. Welcome to wholesale CE approved and ISO certified products made in China here and get quotation from our factory. Also, custom service and ODM service are available.

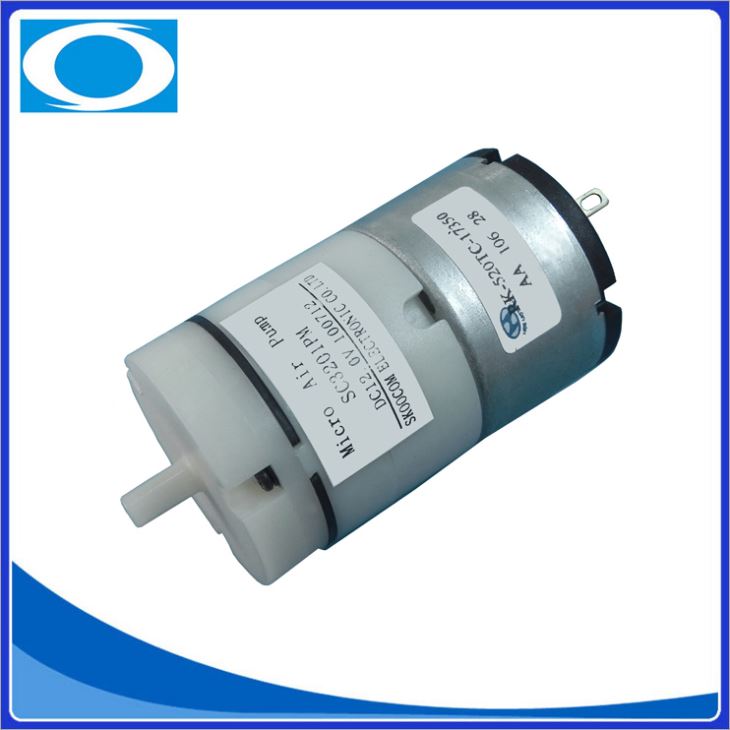

3.0LPM diaphragm pump SC3201PM
| PN: SC3201PM | |||
| product specification | |||
| Rated voltage | DC6.0V | DC12.0V | DC24.0V |
| Rated current | ＜650mA | ＜350mA | ＜200mA |
| Inflation time | <8S (From 0 to 300 mmHg in a 500CC tank) | ||
| Air flow | >3.0 L/min | ||
| Pressure | >500mmHg | ||
| Leakage | ＜3 mmHg/min from 300mmhg at 500CC tank. | ||
| Noise | 60dB （30 cm away) | ||
| Apply for | Air | ||
| Life test | 50，000 Times | ||
| Environment | 0～50 ℃，75% RH | ||
一. Application:
--Medical Electronics: Beauty care, healthy care devices, facial sprayer (Cream, Toner, Moisture) ,
aromatic machine, Fish tank etc. applications which require small size and high air flow.
二. Product feature
--high pressure, high air flow, low noise, long life, low power consumption, wide operation
voltage.
--Used as a pressure boost pump in beauty care，Hydrating and moisturizing machines，Air
Flow reaches 3.5L/MIN or above.
