Products Description
SC3401PM Low Pressure Micro Diaphragm Pump (DC 3V / 6V / 12V, Single Port)
The SC3401PM is a single-port DC micro diaphragm pump designed for low-pressure, precision airflow applications - from gas detectors and aroma diffusers to coffee machines and portable medical devices. Available in DC 3V, 6V, and 12V, it delivers 1.0 L/min with stable, low-noise output (<65 dB) and a tested service life of 50,000 cycles. OEM customisation available. Free samples · RoHS / REACH / ISO certified.
Product Picture
| Parameter | |||
|---|---|---|---|
| Model | SC3401PM | ||
| Rated Voltage | DC 3.0V | DC 6.0V | DC 12.0V |
| Rated Current | <500 mA | <350 mA | <150 mA |
| Power Consumption | <1.5 W | <2.1 W | <1.8 W |
| Air Flow | 1.0 L/min | ||
| Pressure | >350 mmHg | ||
| Inflation Time | <7s (0→300mmHg, 500CC tank) | ||
| Noise | <65 dB (30 cm away) | ||
| Medium | Air | ||
| Lifetime Test | 50,000 cycles | ||
| Working Environment | 0~50°C, 75% RH | ||
| Port Configuration | Single outlet port | ||
| Certifications | RoHS, REACH, ISO | ||
SC3401PM vs SC3402PM - How to Choose
The SC3401PM and SC3402PM share identical electrical specifications and physical dimensions. The only difference is the port configuration:
| SC3401PM | SC3402PM | |
|---|---|---|
| Outlet ports | 1 (single outlet) | 2 (dual outlet) |
| Best for | Single-tube circuits, direct-drive applications | Dual-branch circuits, simultaneous two-zone delivery |
| Typical use | Gas detector sample draw, single-cuff inflation, single-chamber aroma delivery | Dual air bag inflation, charge+vent circuit, two-stage sample delivery |
| Circuit complexity | Lower - no manifold or splitter needed | Better for parallel delivery without external splitters |
Choose SC3401PM when: your device has one output path and you want the simplest, most compact integration.
Choose SC3402PM when: your design needs to split airflow to two zones simultaneously, or you need a combined inflation/exhaust port layout.
Both models are available for OEM sampling. Specify your preferred port configuration when requesting a quote.
Why "Low Pressure" Is a Design Feature, Not a Limitation
In micro pump selection, pressure rating and flow rate are not always "more is better." Many precision applications require a stable, controlled low-pressure output rather than maximum pressure:
| Application | Why low pressure matters |
|---|---|
| Gas detectors / air samplers | Sensors require a fixed, stable sample flow - excessive pressure causes measurement errors |
| Aroma diffusers / fragrance delivery | Gentle, constant airflow disperses fragrance evenly; high pressure causes uneven bursts |
| Coffee machine steam path (auxillary) | Controlled low-pressure air purge prevents liquid backflow in branch circuits |
| Wearable pressure therapy | Gradual, controllable pressure build-up is required; rapid high-pressure inflation is uncomfortable |
| Lab gas supply | Precise flow rate control is more important than peak pressure |
The SC3401PM's 1.0 L/min flow with a stable pressure ceiling makes it the right choice wherever precision matters more than power.
Application Scenarios
| Device / System | How SC3401PM Is Used |
|---|---|
| Gas detectors & air quality monitors | Drawing air samples through sensors at controlled, stable flow |
| Aroma diffusers & fragrance delivery | Gentle pressurised airflow for consistent scent dispersal |
| Coffee machines | Auxiliary air path for backflow prevention or steam purge |
| Portable medical monitors | Low-pressure pneumatic circuits in wearable or handheld diagnostics |
| Wearable compression therapy | Gradual single-zone air bag inflation at comfortable pressure rates |
| 3D printer cooling | Low-flow directed air cooling of print head or build area |
| Laboratory instruments | Steady low-pressure gas supply for analysis chambers |
Company Introduction
About us
Founded in 1998, Shenzhen Skoocom Electronic Co., Ltd. is a national high-tech enterprise with in-house R&D, precision manufacturing and global marketing capabilities. In 2022 and 2025, it was twice awarded the title of National "Little Giant" Enterprise (Specialized, Refined, Unique, and Innovative) by the Ministry of Industry and Information Technology of China. Skoocom focuses on the R&D and production of various types of micro pumps, solenoid valves, and electromagnets, providing professional micro pump and valve solutions and related supporting technical services to enterprises in the fields of medical devices, AI smart home appliances (such as cleaning robots, learning, entertainment and lifestyle robots, 3D printers, smart toilets, kitchen appliances, coffee machines, water purifiers), maternal and child products, medical aesthetics and health, and laboratory research.
Advantage of Skoocom
3.1 The products of our company is designed and developed by ourselves and what is essential is that our products has the relevant patent.
3.2 The key devices of the rubber diaphragm are designed by ourselves, we have all kinds of rubber formulas, which are characterized by strong resistance of high and low temperature, long-life time, good acid-base tolerance, and it has also achieved the standard of food grade and medical level.
3.3 Our products has passed a series of reliable tests.
3.4 We have the professional and international development team.
3.5 Our products is bountiful, and it is also can be made by our customers' requirements.
3.6 We have made a tight contact with 1500 enterprises from all over the world, what's more, we have worked in the period of pump for more than 20 years.

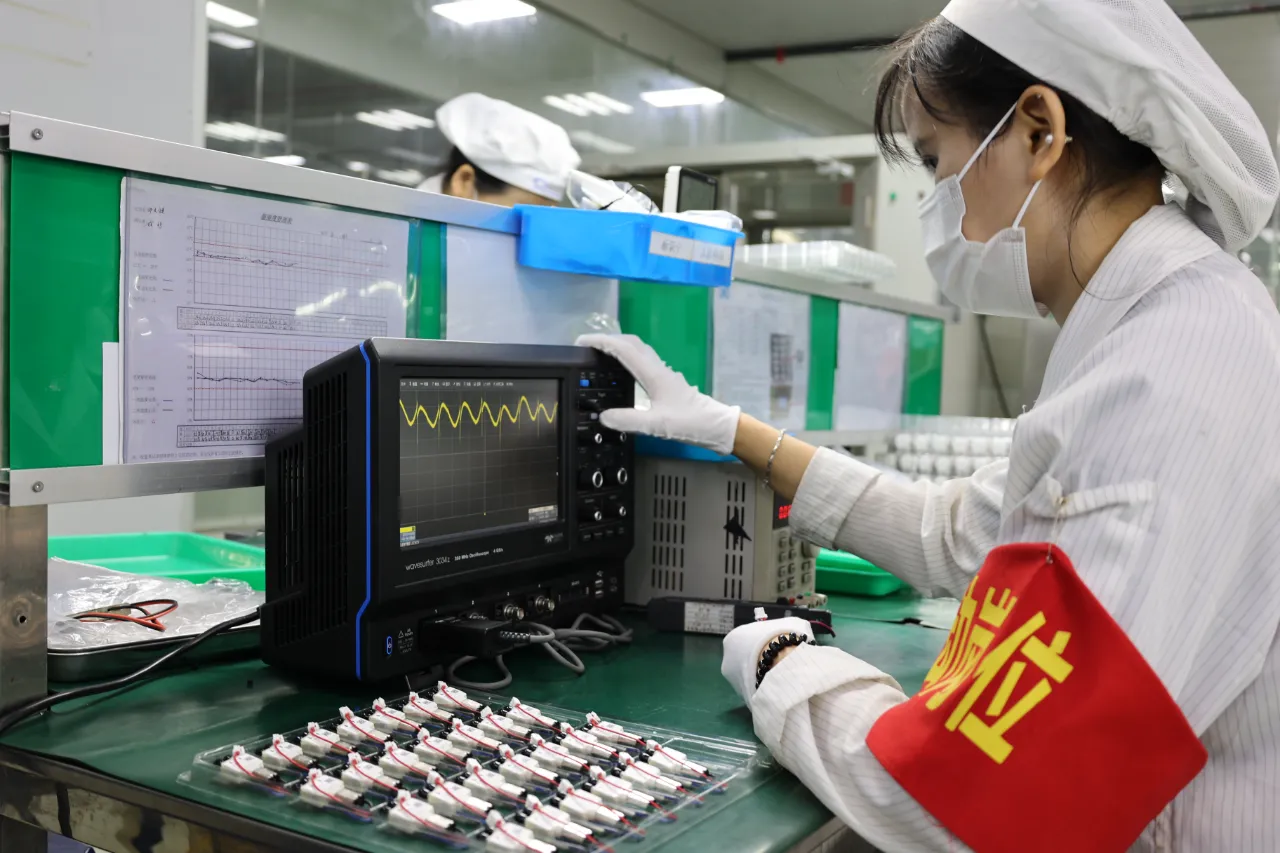

Company Pictures
