SC6002XPM High-Flow Brushless Diaphragm Air Pump (DC 6V / 12V / 24V)
Current Standard Model: SC6002XPM | Old Model: SC6002PM (Direct Drop-in Replacement)
High-capacity brushless diaphragm air pump delivering >15.0 L/min airflow, >80 kPa (>600 mmHg) positive pressure, and 1,000-hour continuous service life. Engineered specifically for dental cleaning engines, air polishing scalers, oral surgery delivery carts, pneumatic massage therapy units, and aesthetic medical devices requiring oil-free air purity, rapid pneumatic pressure buildup, and low maintenance overhead.
Built for Dental Engines, Oral Scalers & Medical Pneumatic Systems
-
>15 L/min High-Volume Air Delivery: Generates massive pneumatic flow (up to 18 L/min unconstrained) to propel abrasive powders smoothly in dental air polishing scalers, eliminating slurry clogging and ensuring uniform stain removal.
Medical-Grade Brushless Motor (1,000-Hour Life): Built with an advanced brushless DC drive that produces zero carbon dust or electrical sparking, guaranteeing ultra-pure, contaminant-free air for sensitive clinical oral procedures.
Deep Penetration Pressure (>80 kPa / >600 mmHg): Easily overcomes the substantial backpressure of 2-meter dental cart umbilical tubing, micro-bore handpiece orifices, and in-line sterile air filters.
Rapid <6-Second Pressure Buildup: Pressurizes a large 1500cc surge tank from 0 to 300 mmHg in under 6 seconds, ensuring instantaneous air delivery upon foot-switch actuation with zero latency.
Low-Vibration Balanced Operation (<65 dB): Precision dynamic balancing and multi-chamber pulsation damping keep running noise at a smooth 54–62 dB, fostering a serene, low-stress operatory environment for patients.
Robust ø60mm Flange with 280mm Lead Wires: Features a sturdy 60mm mounting flange for secure chassis anchoring and pre-wired 280mm leads for effortless integration inside medical equipment consoles.
Technical Specifications
*Source: Verified from official Skoocom engineering drawing SC6002XPM (SC6002PM). Operating ambient: 0~50 °C, 75% RH. Standard engineering tolerances apply (±0.3mm to ±0.5mm).
| Parameter | DC 6.0V Spec | DC 12.0V Spec | DC 24.0V Spec | Test Conditions & Remarks |
|---|---|---|---|---|
| Current Standard Model | SC6002XPM | Latest production generation | ||
| Old Model | SC6002PM | 100% mechanical & form-factor backward compatible | ||
| Motor Drive Type | Brushless DC Motor (BLDC) | Zero carbon brush wear, zero particle emission | ||
| Rated Operating Current | < 2000 mA | < 1500 mA | < 1000 mA | Under full rated output pressure head |
| Output Air Flow Rate | > 15.0 L / min (Up to 18.0 L/min unconstrained at 0 kPa) | Tested unconstrained at outlet port | ||
| Maximum Positive Pressure | > 80 kPa (> 600 mmHg / 0.8 bar / 11.6 Psi) | Peak positive pressure threshold | ||
| Inflation Time (1500cc Tank) | < 6.0 seconds | Pressurizing from 0 to 300 mmHg in 1500cc tank | ||
| Airtightness / Leakage Rate | < 10 mmHg / min | Tested from 300 mmHg in 1500cc closed tank | ||
| Operating Acoustic Noise | < 65 dB | Tested at 30 cm distance on damping pad (54-62 dB typical) | ||
| Service Life Testing | ≥ 1,000 Hours Continuous | Standard medical continuous heavy-duty life test | ||
| Applicable Fluid Media | Clean, Oil-Free Air | Medical-grade pneumatic circuit only | ||
| Overall Envelope Dimensions | ø60.0 ± 0.5 mm (Head Ø) × 44.0 ± 0.5 mm (Head Depth) × 69.0 ± 0.5 mm (Motor Length) | Motor body diameter: 35.6 ± 0.5 mm | ||
| Nozzle Barb Geometry | Nozzle Length: 11.20 ± 0.3 mm (Multi-rib barbed retention) | Mated with 4.0×7.0mm or 5.0×8.0mm medical PU/silicone tubing | ||
| Pre-Wired Lead Harness | 280 ± 10 mm length | Stripped 5 ± 1 mm (Red +, Black -) | Pre-stripped ends for rapid harness connector crimping | ||
Application Focus: High-Capacity Air Generation in Dental & Healthcare Hardware
1. Dental Air Polishing & Prophylaxis Handpieces
Modern dental powder polishers require continuous high-velocity airflow to entrain prophylactic powders (sodium bicarbonate or glycine) without moisture clumping. Delivering >15 L/min air volume at >80 kPa pressure, SC6002XPM maintains consistent particle acceleration across extended cleaning sessions, preventing nozzle clogging and ensuring uniform plaque biofilm removal.
2. Dental Chair Delivery Units & Syringe Purge Air
In operatory treatment consoles, SC6002XPM rapidly charges internal surge tanks to power air/water 3-way syringes and high-speed handpiece exhaust lines. Its brushless design guarantees oil-free, carbon-free air delivery directly to the oral cavity, fully complying with clinical infection prevention standards.
3. Aesthetic Medical Devices & Sequential Lymphatic Compression
In medical body contouring systems and rapid-cycling multi-chamber compression therapy sleeves, large volumes of air must be transferred in fractions of a second. Pressurizing 1.5L in under 6 seconds, SC6002XPM drives rapid cyclical cuff inflation without motor overheating.
Company introduction
Rooted in Fluid Control, Forging National Intelligent Manufacturing.

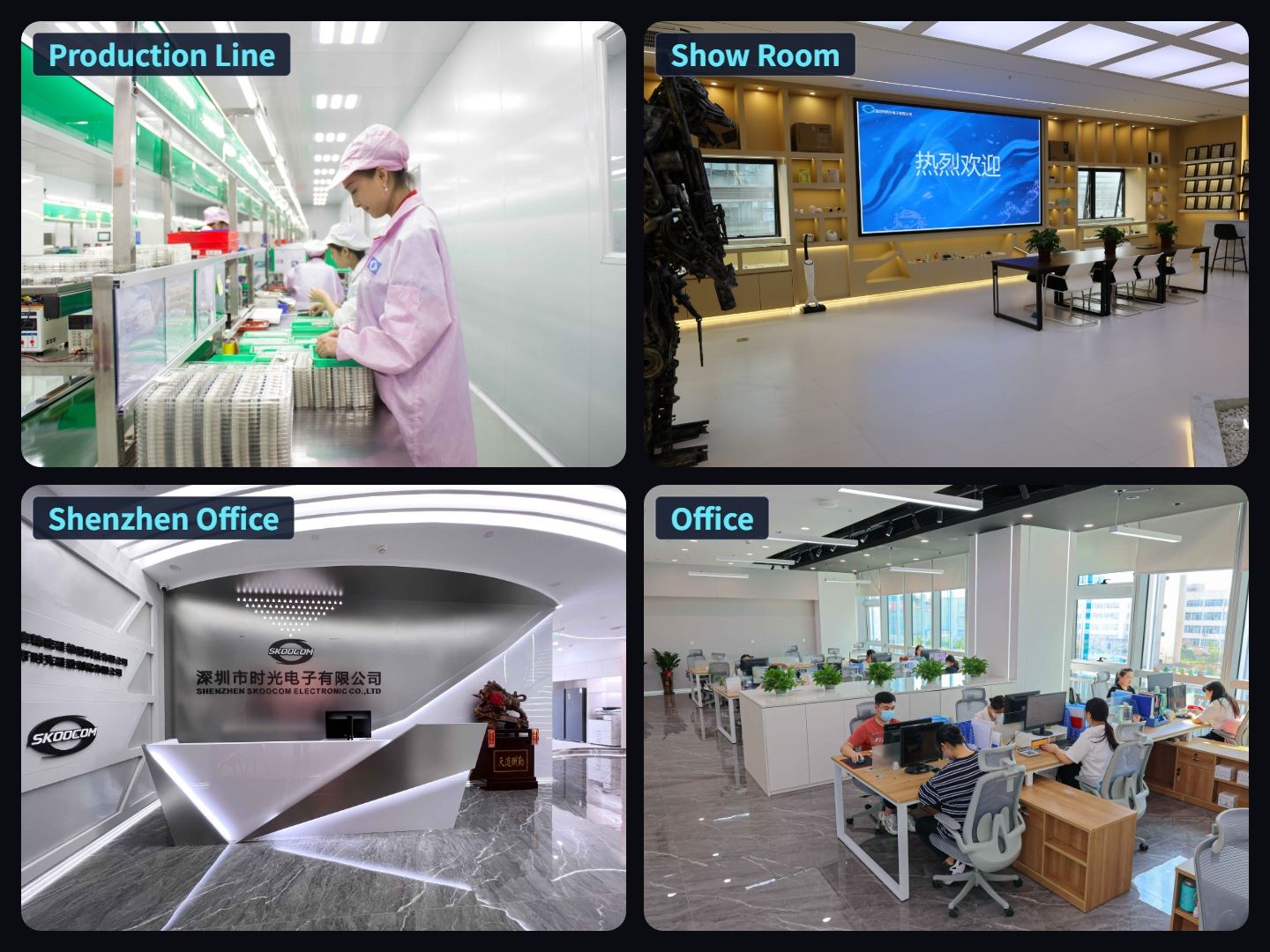

Over more than two decades of exploration and development, Skoocom has established four subsidiaries, each responsible for one of four key sectors: Product R&D, Precision Molding, Precision Rubber, and Liquid Silicone Rubber. This not only creates economies of scale but also continuously strengthens the foundation for Skoocom's growth and expansion by reducing costs, improving service quality, and enhancing innovation capabilities. The company has introduced a wide range of advanced equipment to ensure that every step-from raw materials to finished products-undergoes rigorous inspection, control, and testing, so that every product can meet the diverse application needs of different customers.
