Products Description

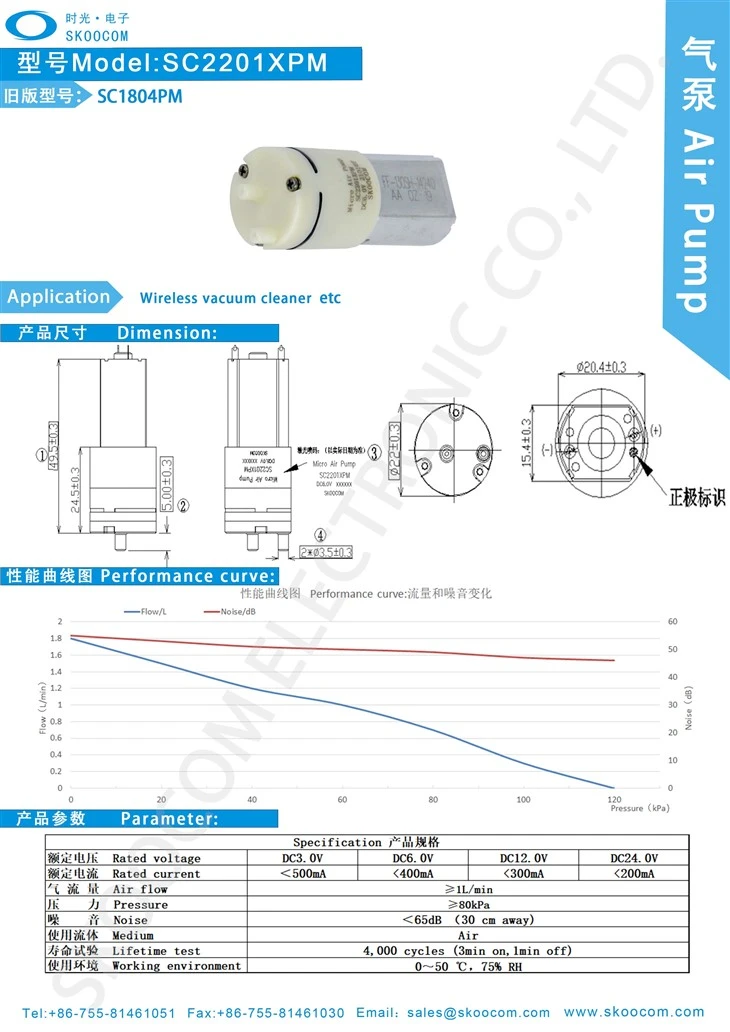

Micro Air Pump Parameter Specification Table
1. Basic Information

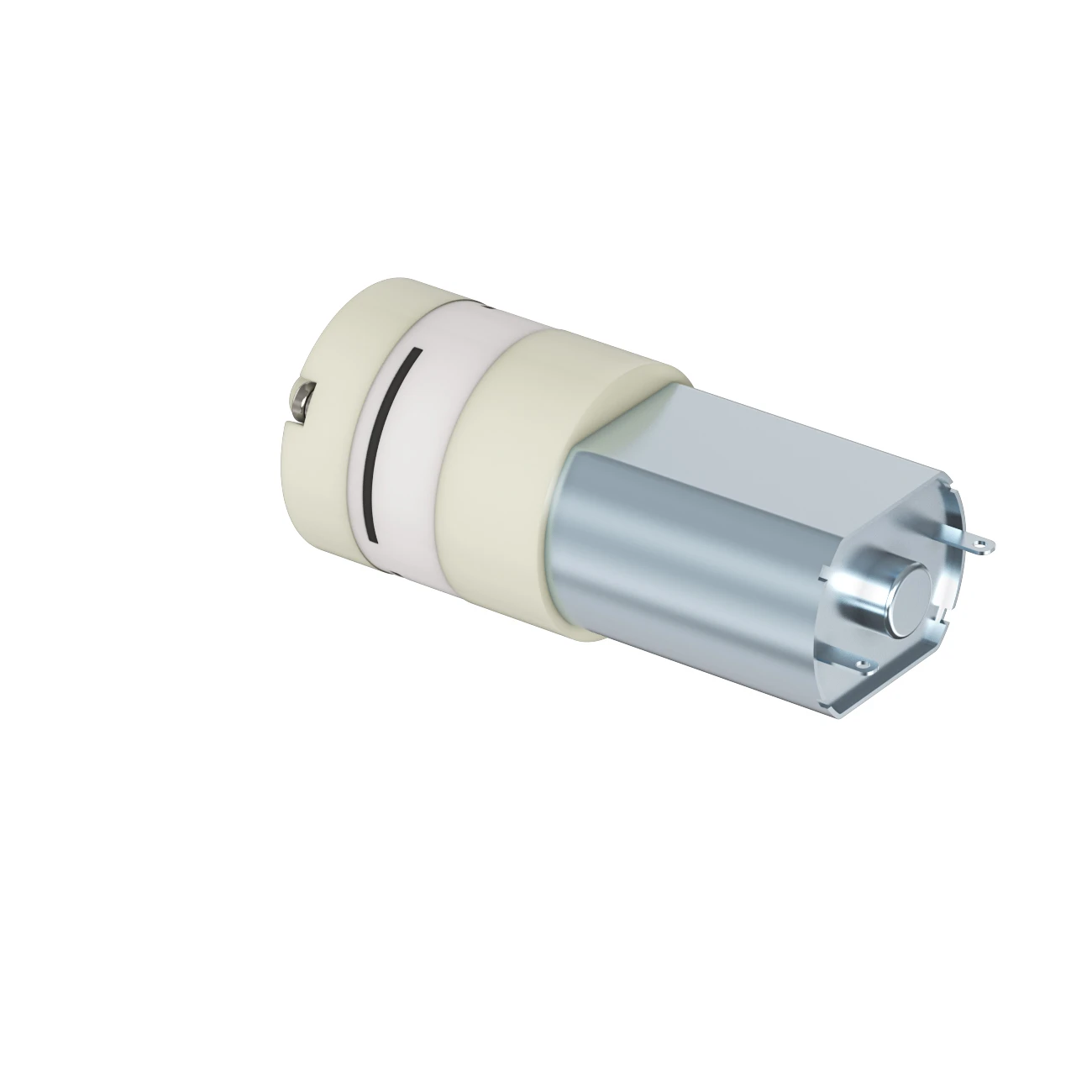

Product Type: Micro Air Pump
Model: SC2201XPM
Former Model: SC1804PM
Application: Wireless vacuum cleaner, etc.
High-performance DC mini diaphragm air pump engineered for beauty and medical vacuum equipment, delivering ≥80kPa pressure, < 65dB (Tested at 30cm distance) low noise, and reliable 4,000-cycle durability in a compact, low-power design.
2. Performance & Electrical Parameters
| Parameter | Specification & Test Condition |
| Rated Voltage | DC 3.0V / DC 6.0V / DC 12.0V / DC 24.0V |
| Rated Current |
DC 3.0V: < 500mA DC 6.0V: < 400mA DC 12.0V: < 300mA DC 24.0V: < 200mA |
| Air Flow | ≥1.0 L/min |
| Pressure | ≥80kPa |
| Noise Level | < 65dB (Tested at 30cm distance) |
| Operating Medium | Air |
| Lifetime Test | 4,000 cycles (3 min ON, 1 min OFF) |
| Working Environment | 0-50℃, 75% RH |
3. Mechanical Dimensions
| Item | Dimension (mm) |
| Total Length | 49.5 ± 0.3mm |
| Pump Head Length | 24.5 ± 0.3mm |
| Nozzle Length | 5.00 ± 0.3mm |
| Body Outer Diameter |
ø22 ± 0.3mm/ Motor section ø20.4 ± 0.3 mm |
| Nozzle Outer Diameter | 2× ø3.5 ± 0.3 mm |
About Manufacturer
Founded in 1998, Shenzhen Skoocom Electronic Co., Ltd. is a national high-tech enterprise with in-house R&D, precision manufacturing, and global marketing capabilities. In 2022 and 2025, it was awarded the title of National "Little Giant" Enterprise (Specialized, Refined, Unique, and Innovative) by the Ministry of Industry and Information Technology of China. Skoocom focuses on the R&D and production of various types of micro pumps, solenoid valves, and electromagnets, providing professional micro pump and valve solutions and related supporting technical services to enterprises in the fields of medical devices, AI smart home appliances (such as cleaning robots, learning, entertainment and lifestyle robots, 3D printers, smart toilets, kitchen appliances, coffee machines, water purifiers), maternal and child products, medical aesthetics and health, and laboratory research.

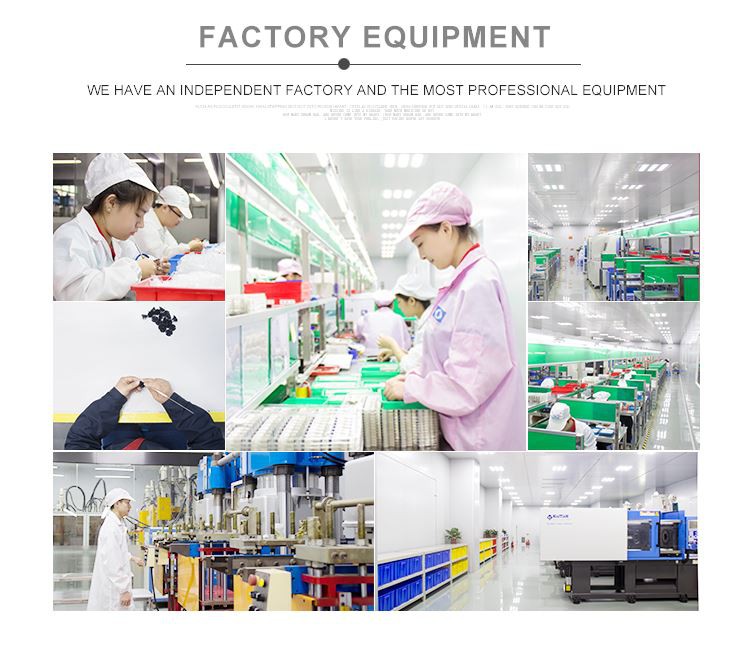

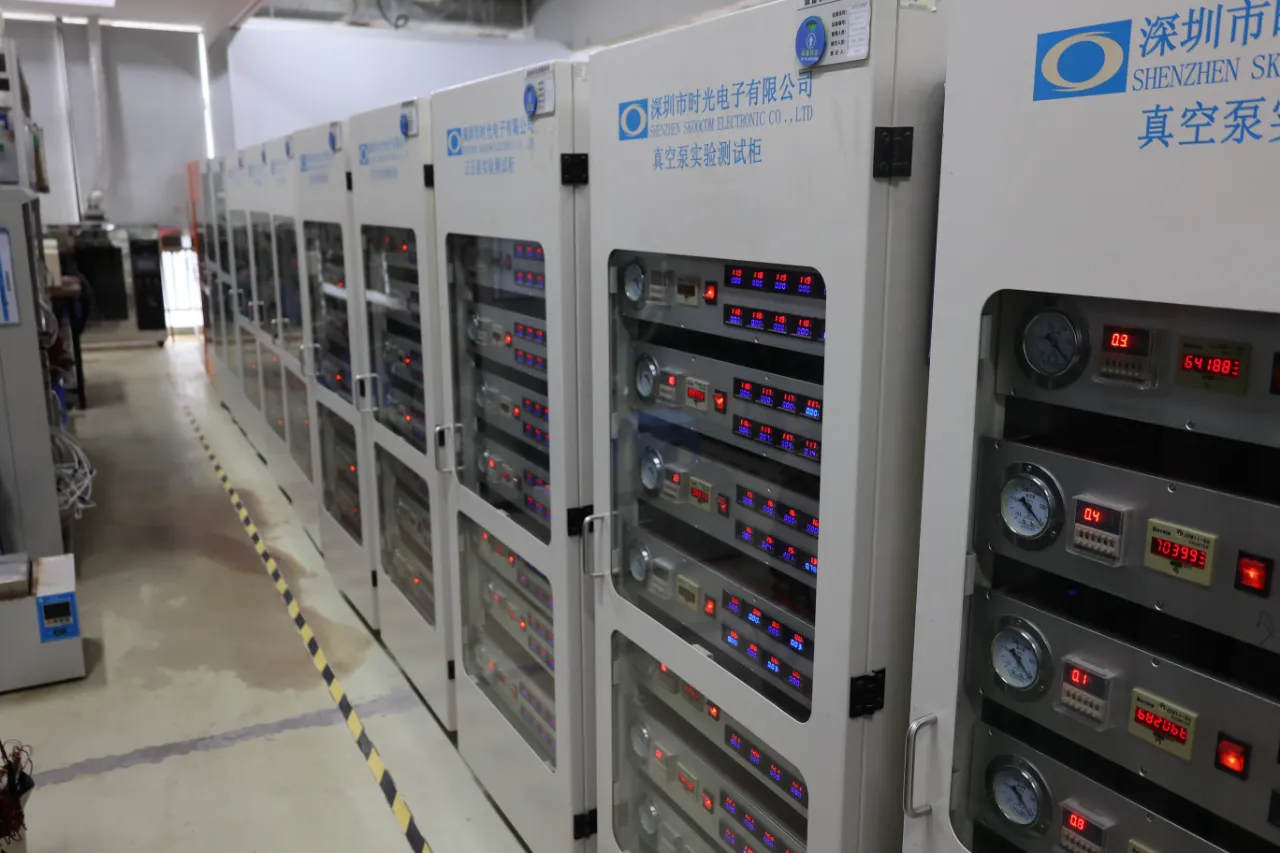

Our factory & equipment

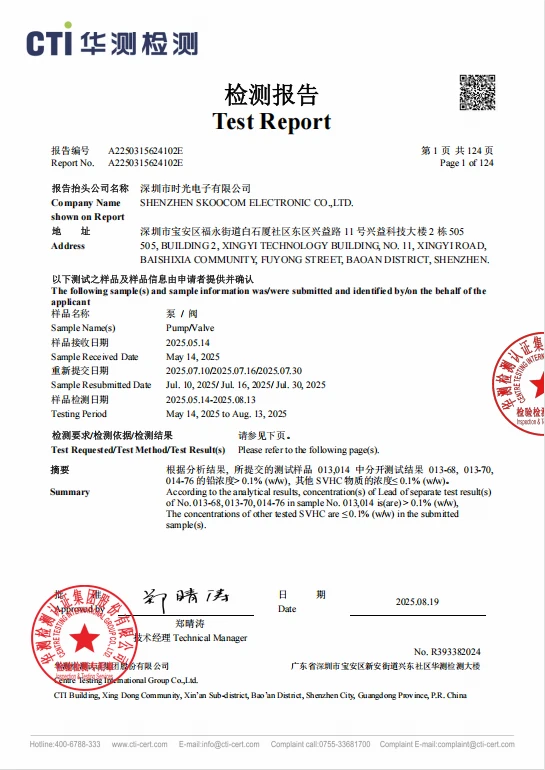

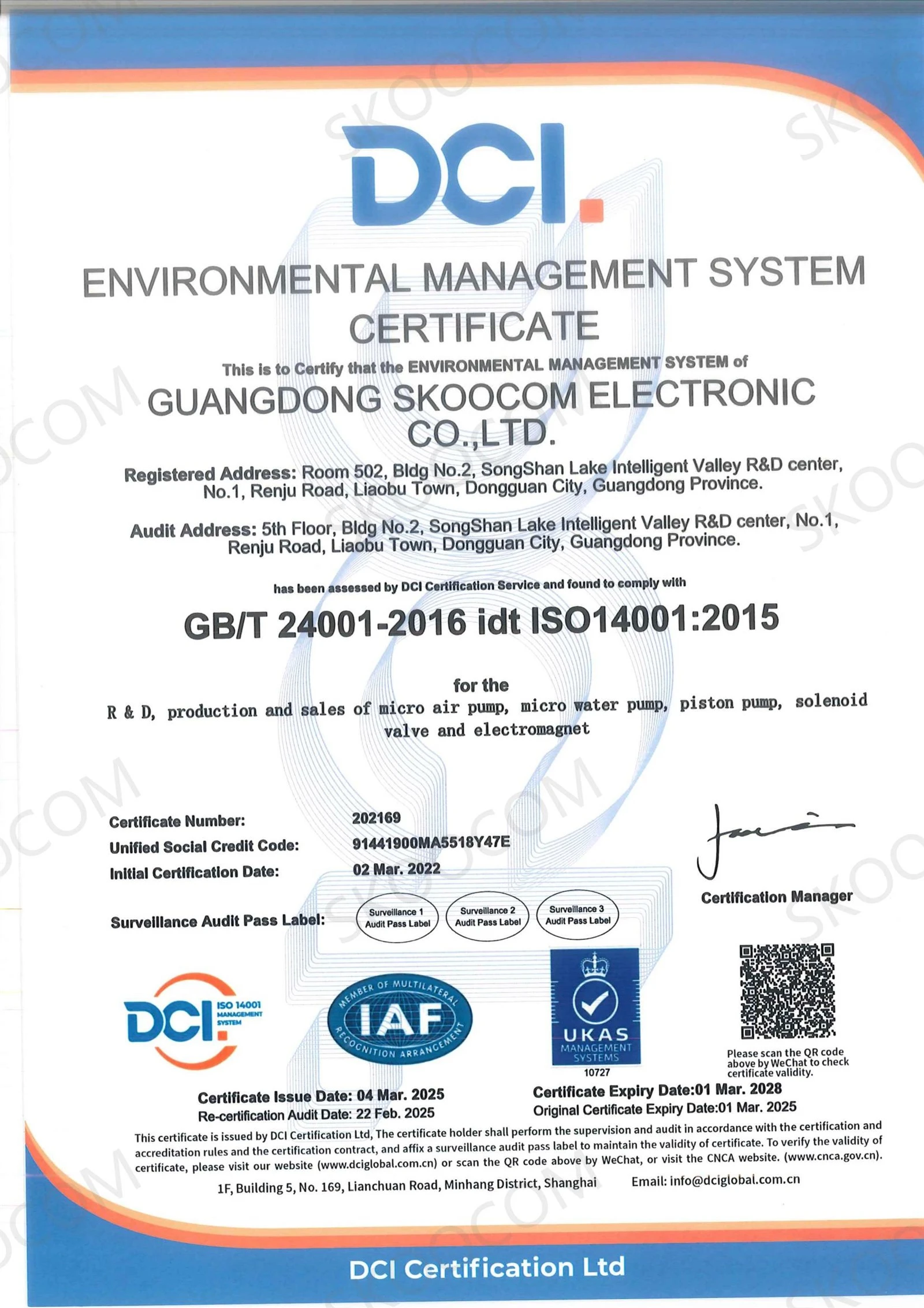

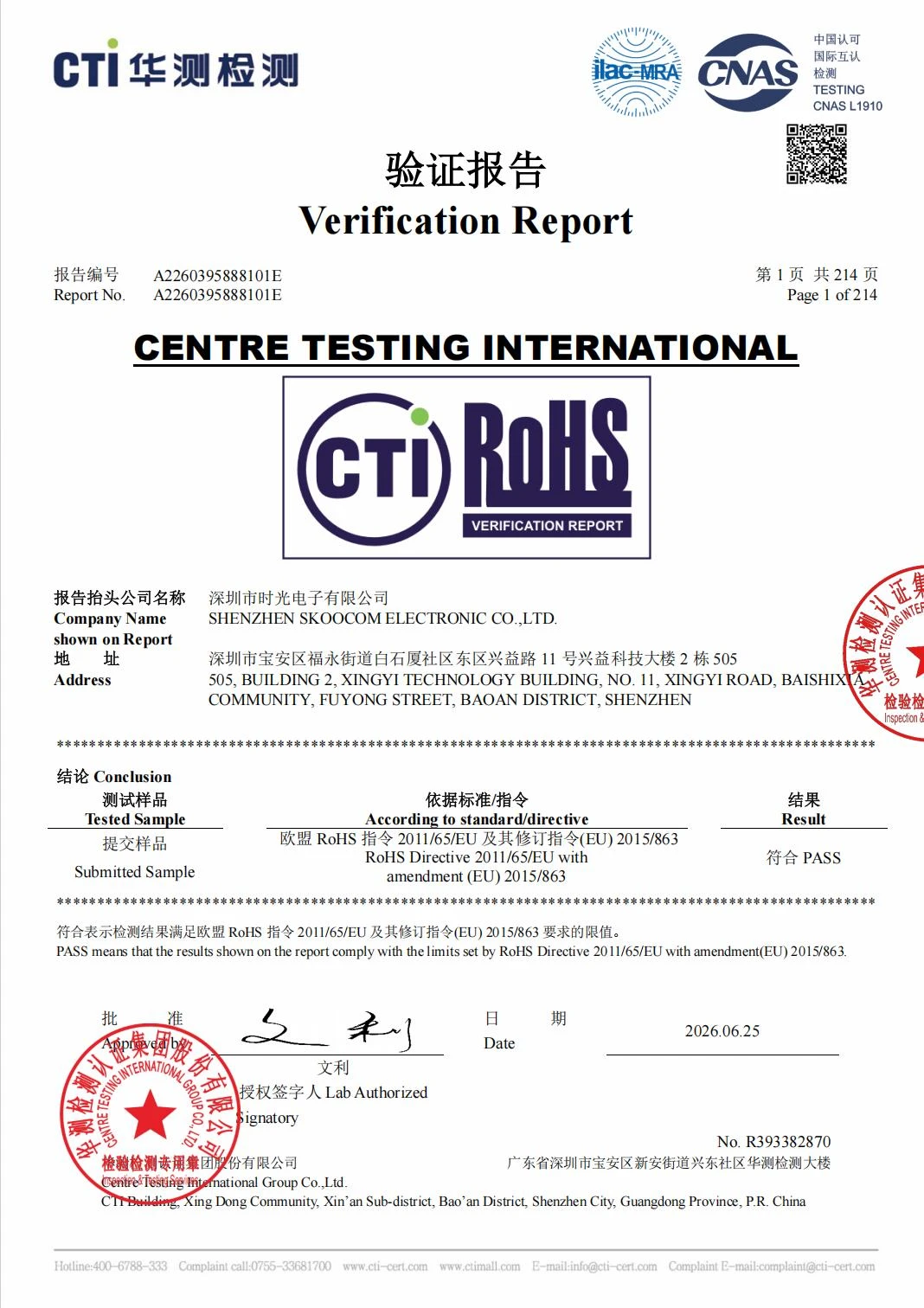

Our Certificate
