DC3V Spray Valve SC0423G

DC3V Spray Valve SC0423G

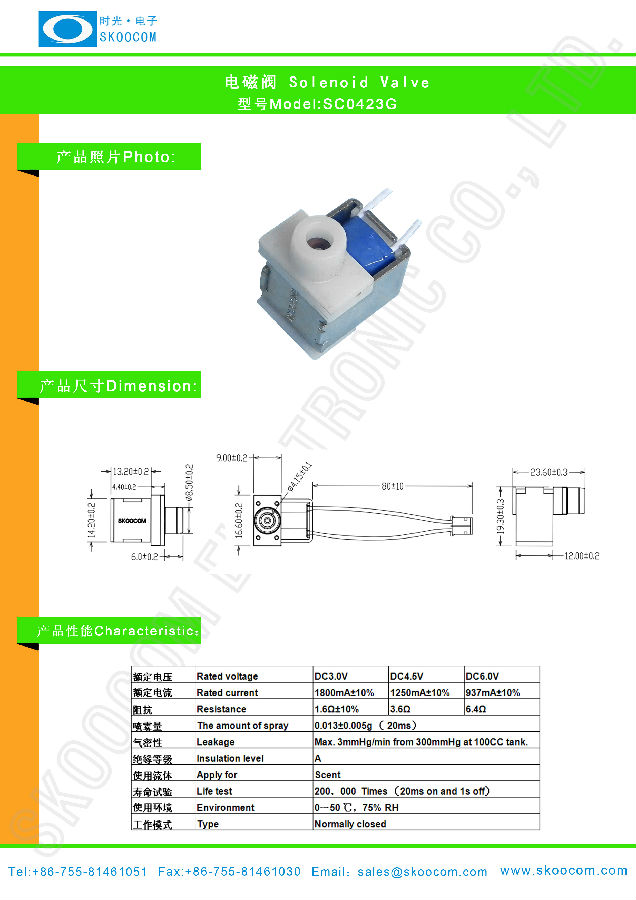

DC3V spray valve SC0423G

Detailed description

DC3V spray valve SC0423G



PN: SC0423G
product specification
Rated voltageDC3.0VDC4.5VDC6.0V
Rated current1800mA±10%1250mA±10%937mA±10%
Resistance1.6Ω±10%3.6Ω±10%6.4Ω±10%
The amount of spray0.013±0.005g(20ms)
LeakageMax. 3mmHg/min from 300mmHg at 100cc tank
Insulation levelA
Apply forScent
Life test200,000 Times (20ms on and 1s off)
Environment0~50℃ ,75%RH
TypeNormally Closed












About us
Founded in 1998, Shenzhen Skoocom Electronic Co., Ltd. is a professional company which is applied in developing, manufacturing and marketing in pneumatic pumps, solenoid valves and electromagnets with various specifications.
We have made the business relations with more than 1500 enterprises from all over the world, we possessed 25 patent, we owe the rubber factory and tooling factory, which contained plastic and rubber injecting model equipment for more than 30 sets. Moreover, Skoocom has passed the identification of ISO 9001:2008, and our products has also passed the certifications of UL, CE, PoHS, FDA, NSF, Reach, etc.


How to choose a suit pump or solenoid valve?
Pls provide the pump size,parameters of flow,pressure,noise,life time, etc,
For the solenoid valve, do you need NO(normally open) or NC(normally closed type)? How much pressure you need? For negetive or possitive? One way,two way or three way? Port size requires.
According to your requirements and application,we can suggest a suit pump or valve.


Advantage of Skoocom
3.1 The products of our company is designed and developed by ourselves and what is essential is that our products has the relevant patent.
3.2 The key devices of the rubber diaphragm are designed by ourselves, we have all kinds of rubber formulas, which are characterized by strong resistance of high and low temperature, long-life time, good acid-base tolerance, and it has also achieved the standard of food grade and medical level.
3.3 Our products has passed a series of reliable tests.
3.4 We have the professional and international development team.
3.5 Our products is bountiful, and it is also can be made by our customers' requirements.
3.6 We have made a tight contact with 1500 enterprises from all over the world, what's more, we have worked in the period of pump for more than 13 years.


Company Pictures

Established in 1998, Skoocom Electronic has been developing, manufacturing and marketing quality dc3v spray valve sc0423g and become well-known as one of the professional manufacturers and suppliers. Equipped with a productive factory, we warmly welcome you to buy our dc3v spray valve sc0423g, and customized service is also available.

Hot Tags: DC3V spray valve SC0423G manufacturers, suppliers, factory, customized
